Introduction
It is estimated that 5-10% of people are born with pancreas divisum (PDiv) [1,2], which has been implicated in the pathogenesis of acute, recurrent and chronic pancreatitis, as well as pancreatic type abdominal pain. Ductal obstruction and/or minor papilla stenosis have been proposed as responsible for the clinical presentation [3], which is categorized into 3 groups: recurrent acute pancreatitis (RAP) episodes, chronic pancreatitis (CP) and pancreatic-type pain (PP) with no objective findings of pancreatitis [3-5]. Therefore, dorsal ductal decompression at the level of the minor papilla has been the mainstay of surgical and/or endoscopic therapies of PDiv. Endoscopically, the most frequently employed methods are minor papilla sphincterotomy, minor papilla sphincteroplasty, and dorsal duct stenting alone or in combination with the aforementioned. While these interventions are widely accepted and performed in patients with clinically evident PDiv, most of the evidence available comes from small, uncontrolled, retrospective studies. In addition, efficacy rates are widely variable and the predictors of successful endoscopic therapy remain unclear. We sought to perform a meta-analysis of studies to estimate the efficacy of endoscopic therapy and identify potential predictors of successful endoscopic intervention in patients with PDiv by subgroup and meta-regression analysis.
Materials and methods
Design, analysis, and reporting were performed according to the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) statement and guidelines [6].
Literature search
A systematic literature search was performed to identify all reports of endoscopic therapy attempts in patients with PDiv through January of 2016. The electronic databases searched included MEDLINE (PubMed), and ScienceDirect (as of January 5, 2016). The key words and terms searched included: (“Pancreas Divisum” OR “Pancreatic Divisum”) AND (“Endoscopic therapy” OR “Endotherapy” OR “Endoscopy” OR “ERCP”). The search was performed within the title, abstract, and key words. The references of relevant articles were reviewed and additional abstracts were added. The search strategy is detailed in Fig. 1.

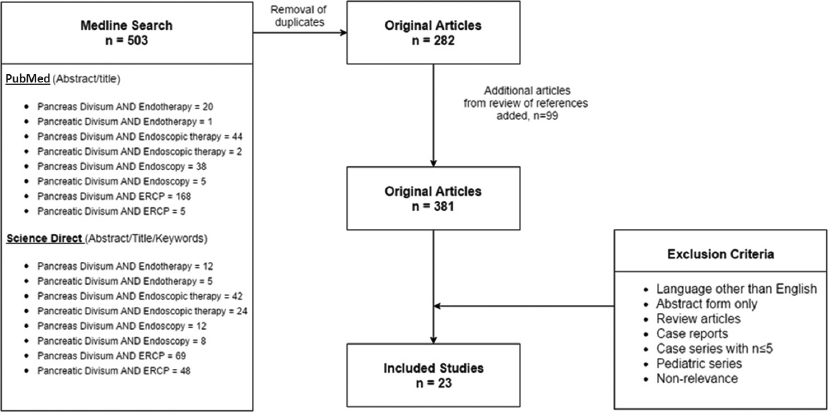

Figure 1 Literature search flowchart
ERCP, endoscopic retrograde cholangiopancreatography.
Study selection and inclusion criteria
Two reviewers (LM & BA) independently searched the literature and identified studies for inclusion. Disagreements were resolved by consensus between the two authors and discussion with a senior author (HM) when necessary. Exclusion criteria were: article published in language other than English, abstract form only with no full text available, case series with total number of patients less than or equal to 5, case reports, review articles, and series that including a pediatric patient population or were not relevant to the research question. Studies focusing on a subset of PDiv patients, such as those relating to santorinicele, were excluded [7]. Studies with unconventional interventions, such as botulinum toxin injection [8], were also excluded from the review as they did not fall into the three standard categories of endotherapy. Studies with both complete and incomplete divisum patients were included.
Data extraction and quality assessment
Data included the following pre-defined characteristics and variables: first author last name, year of publication, study design, patient demographics (mean age, sex), number of patients with each clinical presentation (RAP versus CP versus PP), number of patients who only received endotherapy, type of endotherapy used, follow-up duration, definition of successful endotherapy, total success rates, success rates for each clinical presentation, rates of adverse events and rates of pancreatitis following endoscopic retrograde cholangiopancreatography (ERCP). Since all studies identified were case series, the quality of each study was assessed using the checklist developed by Moga et al (Institute of Health Economics, Alberta, Canada) to assess the quality of case series (Table 2A) [9]. The number of points scored by each study can be seen in Table 2B. Studies scoring >14 points are considered to be of “good” quality.

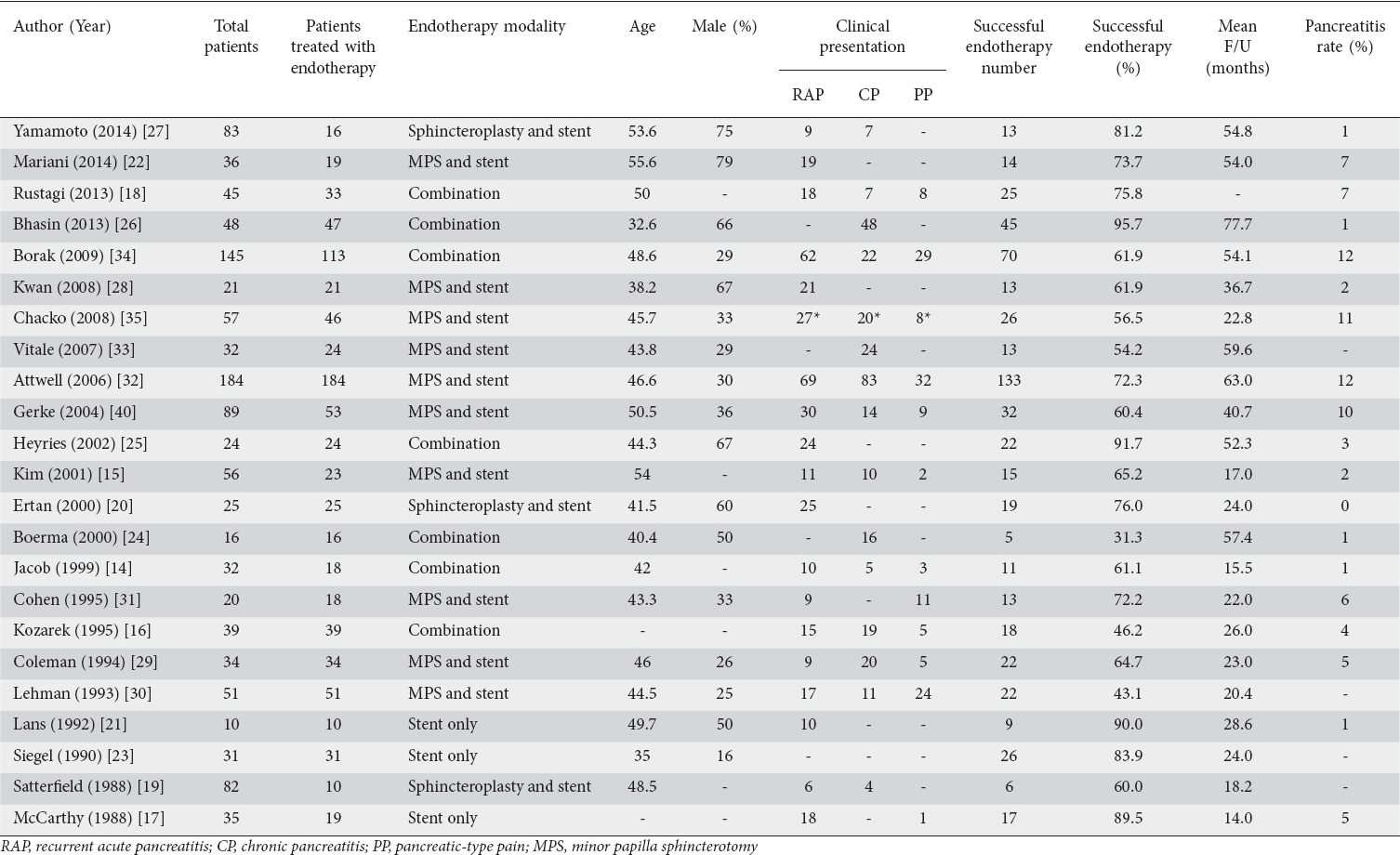

Table 1 Study characteristics

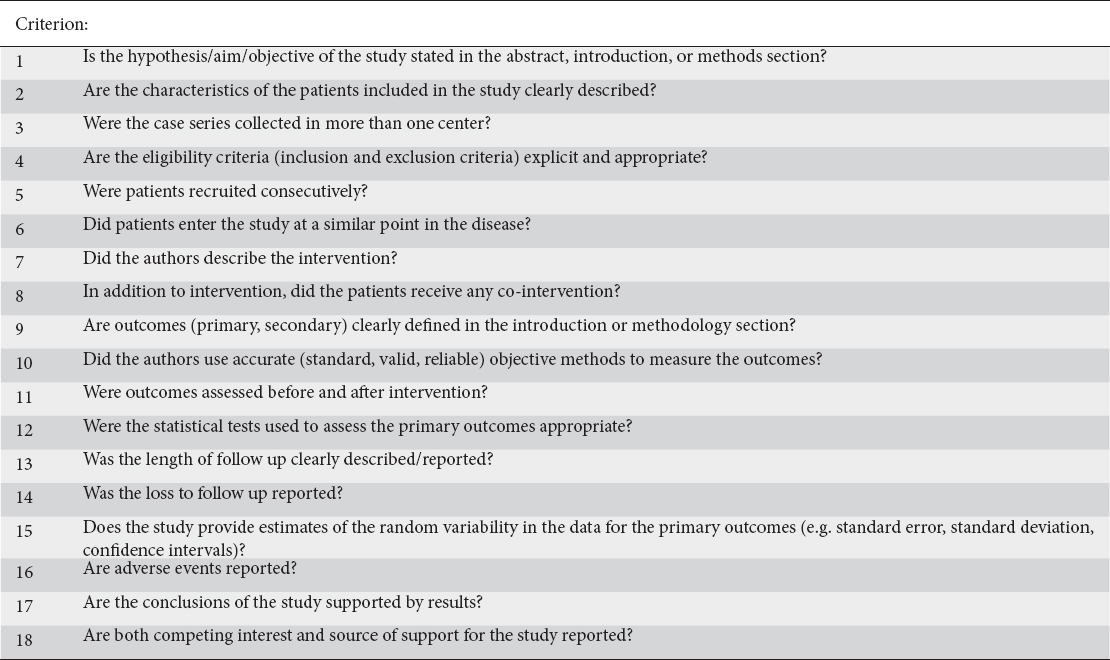

Table 2A Quality assessment tool used [9]

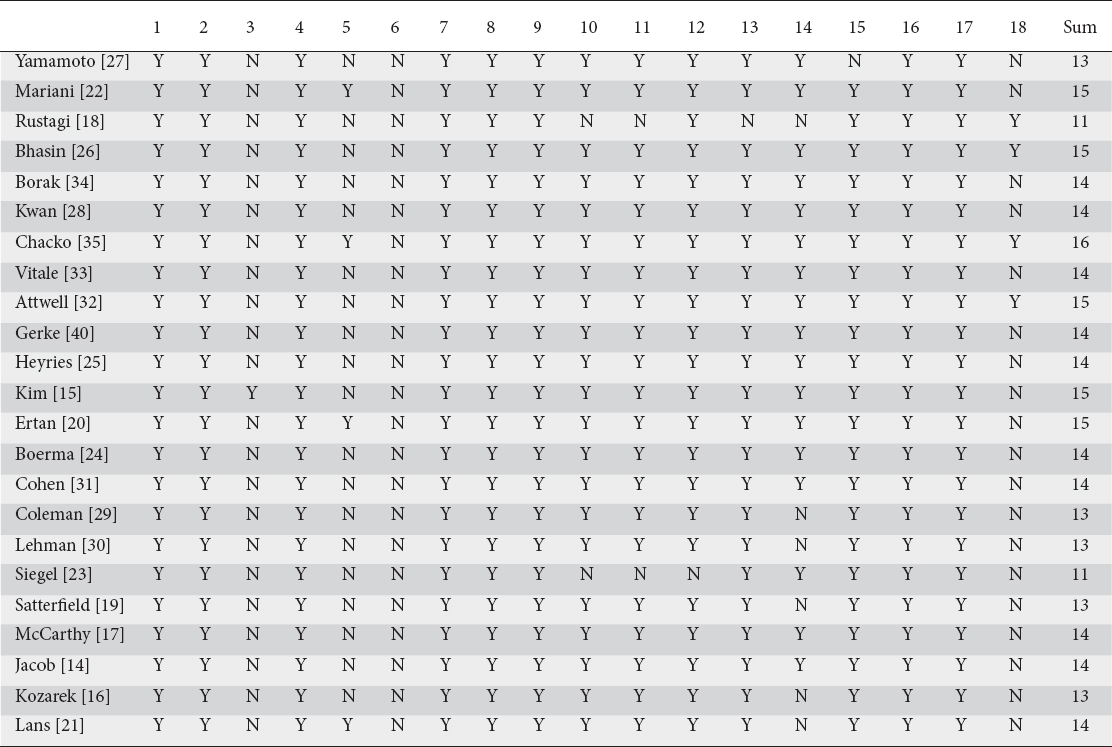

Table 2B Quality assessment of studies
Heterogeneity testing and publication bias assessment
Assessment of heterogeneity was performed by calculating Cochran’s Q statistic, τ2 (estimates the between-study variance) and I2 (quantifies the degree of heterogeneity) with P values <0.1 considered statistically significant [10,11]. Publication bias was assessed using a funnel plot. Heterogeneity was assessed for each individual outcome (endotherapy success rate, pancreatitis rate) and subgroup (Total, RAP, CP, PP).
Outcomes measured
1. Author-defined overall success rates of endotherapy, as well as success rates for each individual clinical presentation: RAP, CP, PP
2. Overall reported post-ERCP pancreatitis rates
3. Patient population-related and study design-related potential predictors of successful endotherapy
Data synthesis and statistical analysis
Only the patients for whom final outcomes were reported were included in the analysis. Patients who were lost to follow up were not included. Separate pooled success rates for each of the clinical presentations (RAP, CP, PP) were calculated by analyzing 3 different subgroups. Post-ERCP pancreatitis rates were pooled and analyzed for the studies that reported them. Variables of interest were treated as continuous variables with means and variations. A random effects model was used to calculate pooled effects for each outcome and subgroup [12]. Finally, we performed a meta-regression analysis in an attempt to identify predictors of successful endotherapy. The regression model included the following covariates: year of publication, sex, age, mean study follow up in months and type of endoscopic therapy used. We divided the endotherapy into 4 main types: minor papilla sphincterotomy and stent, minor papilla sphincteroplasty and stent, stenting of the minor papilla only (stent only), and combination therapy (combination). The minor papilla sphincterotomy and stenting group was used the reference group, as this is currently the most commonly employed therapy. Several studies reported median ages and/or median durations of follow up; for these studies, means and variances were recalculated using a formula previously described by Hozo et al [13] and mean values were included in the analysis. Six studies [14-19] were not included in the meta-regression because they lacked data for some covariates, bringing the number of studies analyzed to 17. Statistical analyses were performed using Comprehensive Meta-Analysis (CMA) software, version 3.3.070, 2014 (Biostat, Englewood, NJ 07631, USA).
Results
Descriptive assessment of included studies
Our initial literature search of online databases yielded 503 articles. After removal of duplicates, 282 articles were selected and further reviewed; 99 original articles were added from cross-referencing, bringing the total number of articles reviewed to 381. Of these, 23 studies were selected for final inclusion after application of the exclusion criteria. The search strategy and study selection process is detailed in Supplemental Fig. 1. Studies included were published during the period from 1988 to 2014. Most studies were retrospective case series conducted at a single center; one study was performed at two centers [15]. Only 5 of the 23 studies were prospective [15,20-23] and only 2 of these included a comparative arm [21,22]. Three were performed in Europe [22,24,25], 3 in Asia [15,26,27], 1 in Australia [28], and the remainder in the United States. Twenty-one of the 23 studies reported adverse events rates. Seventeen of the 23 reported male: female ratios, and 45.4% of the patients in those studies were male. Twenty-one studies reported specific data on the subjects’ age, either mean or median. After statistical conversion of medians to means [13], the average age of subjects was 45.5 years. Twenty-two studies reported mean or median follow up and, in the same fashion, an average follow up of 36.6 months was calculated. The study characteristics are outlined in Table 1.
Qualitative assessment of included studies
Five of the 23 studies [16,18,27,29,30] had 13/18 “yes” responses and 2 of 23 [19,23] had 11/18 “yes” responses. The results of the validity testing can be viewed in Table 2B.
Publication bias
Publication bias was assessed by generating funnel plots. Visual interpretation of the plot for standard error (Fig. 2) shows that the studies are distributed symmetrically around the combined effect size, with the exception of a few smaller studies that appear to have larger than average effect sizes (rates of successful endotherapy in this case); this probably indicates the presence of publication bias.

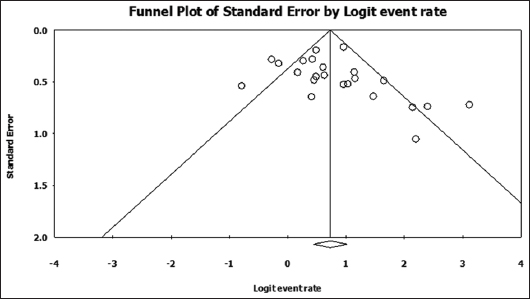

Figure 2 Funnel plot of standard error by logit of successful endotherapy rate
Heterogeneity
Assessment of heterogeneity was performed by calculating Cochran’s Q statistic, τ2 and I2. Substantial heterogeneity was detected (I2≥50%) under the fixed effects model, so we concluded that the assumptions of the fixed effects model had been violated and used the random effects model to calculate pooled effects for each outcome and subgroup [12]. The results of heterogeneity testing for each measured outcome are noted in Table 1.
Primary outcome: endoscopic therapy success rates
In the 23 studies included in the analysis, a total of 874 patients received endoscopic therapy for PDiv. Endotherapy was deemed “successful” by the investigators in 589 of those patients. The pooled success rate of endotherapy was calculated at 67.5% (95% confidence interval [CI] 0.610-0.734; 2-sided P=0.0001). A forest plot of pooled endotherapy success rates is shown in Fig. 3. We analyzed the pooled endotherapy success rates of 3 patient subgroups: RAP, CP and PP. In total, 401 patients from 17 studies were reported to present with RAP and endotherapy was successful, as per author definition, in 289 of these patients. The pooled success rate of endotherapy in patients with RAP was 76% (95%CI 0.712-0.803; 2-sided P=0.0001). Patients presenting with CP and PP did not benefit from endotherapy to the same extent. In 283 patients with CP, reported in 14 studies, endotherapy was successful in 164. The pooled success rate in CP patients was 52.4% (95%CI 0.406-0.640; 2-sided P=0.692) indicating an equivocal effect in this subset of patients. Fewer patients were treated with PP; of 131 patients PPfrom 10 studies, endotherapy was successful in 64. The pooled success rate in PP patients was 48% (95%CI 0.371-0.590; 2-sided P=0.723). Fig. 4 shows a forest plot of endotherapy success rates in patients with RAP, CP or PP. Of 23 studies, 19 reported rates of post-ERCP pancreatitis. The pooled rate of post-ERCP pancreatitis was calculated at 10.1% (95%CI 0.084-0.124; 2-sided P=0.0001).

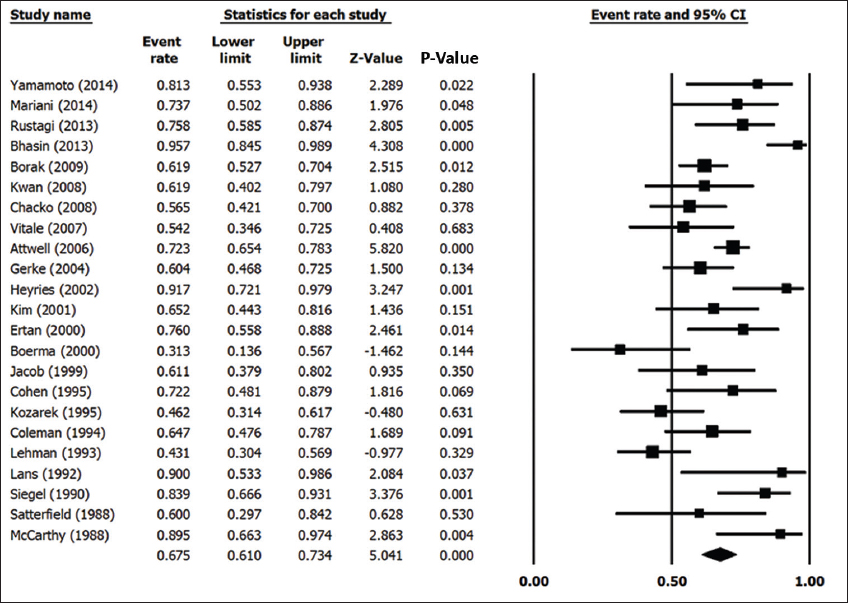

Figure 3 Forest plot of overall endotherapy success rate

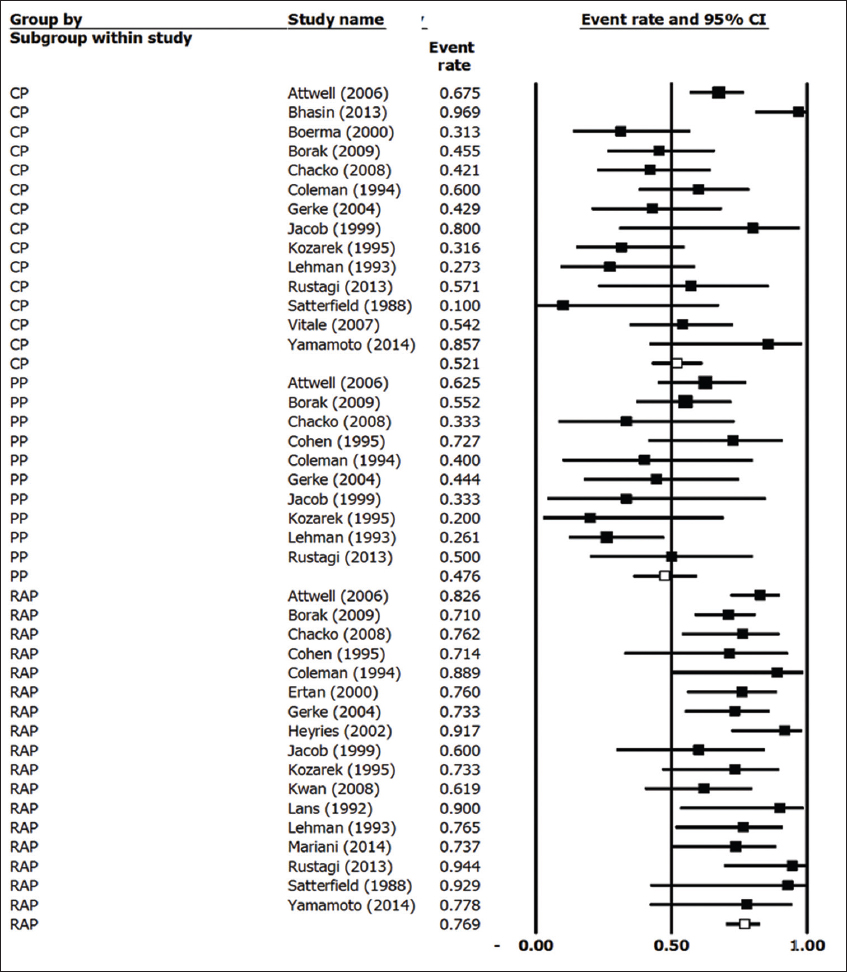

Figure 4 Forest plot of endotherapy success by clinical presentation
RAP, recurrent acute pancreatitis; CP, chronic pancreatitis; PP, pancreatic-type pain PP.
Predictors of successful endoscopic therapy
Seventeen studies that had complete data for all the covariates assessed were included in a meta-regression analysis. The optimal regression fixed effects model included the following covariates: percentage of male patients, mean follow up in months, and dorsal pancreatic duct stenting only. This model explained 16% of the between-study variance with an R2 value of 0.16, P-value= 0.059.
Dorsal duct stenting only (coefficient=1.66, standard error [SE]=0.47, 2 sided P=0.004) and longer duration of follow up (coefficient=0.017, SE=0.005, 2 sided P=0.012) were the only factors associated with better endotherapy success rates. There was a trend for higher success rate among male patients that did not reach statistical significance (2 sided P=0.074).
Discussion
The primary objective of our meta-analysis was to assess the efficacy of endoscopic therapy in the management of PDiv and obtain a more accurate estimate of the effect size. We found that endoscopic therapy was reported to be successful in PDiv with a pooled efficacy rate of 67.5%. Although this rate is likely to be more accurate than those reported in individual studies, it is far from being conclusive in view of the suboptimal study design, lack of a uniform outcome definition, and variable follow-up durations among the studies analyzed. The definition of “successful therapy” varied quite significantly among studies. Some of the definitions used were: no recurrence of pancreatitis episodes after therapy [22,27], decreased number of pancreatitis episodes [28], improvement in patient-reported pain [15,21,23,24,29,31] or no further pain reported [14,24,27], decreased use of analgesics [25], improvement in patient-reported quality of life [26], no need for further therapy [32], no need for surgical therapy [33], decrease in the number of hospitalizations [18,30], decreased emergency room visits [17], and number of therapeutic ERCP sessions the patients required [34]. Several authors used a combination of these definitions [16,17,20,26,34,35]. These variable definitions of success make it hard to generalize conclusions.
Not all authors provided precise definitions of RAP, CP or PP in the studies. However, RAP was mostly defined as at least 2 prior documented episodes of pancreatitis without calcification of the pancreas; recurrent episodes of abdominal pain compatible with a pancreatic origin with an increase in amylase or lipase levels within a year. CP was defined as pancreatic pain coupled with typical radiographic or pancreatographic findings. The maximal therapeutic benefit was observed in patients who presented with RAP, with a pooled efficacy rate of 76%. The therapeutic effect was equivocal in patients with CP and PP. The reason for this difference in response to endoscopic therapy is not fully understood. Some authors postulate that genetic factors predispose people with pancreatic disease to intermittent obstruction (leading to pancreatitis and sequelae [36,37]), which is alleviated by reducing transpapillary pressure with endotherapy in regard to RAP. In contrast, in CP and PP patients it has been suggested that the duct may have sustained irreversible damage that does not make it amenable to endoscopic drainage [18]. Others have postulated that the presence of PDiv is merely an incidental finding in this group of patients [2] and not the primary etiology behind their symptoms; thus, performing endotherapy would not improve their condition.
The post-ERCP pancreatitis pooled rate was 10% (95%CI 0.084-0.124; P=0.0001). Although reported rates vary in the literature, for comparison, in a large analysis of 21 prospective studies, involving 16,855 patients, ERCP-attributable complications occurred in 6.85% (95%CI 6.46-7.24%) of the procedures with a pancreatitis rate of 3.47% (95%CI 3.19-3.75%) [38]. In our analysis, the incidence of post-ERCP pancreatitis in patients with pancreatic disease undergoing endotherapy was higher compared to other indications, suggesting that efforts to minimize adverse outcomes should be considered. The exact reason for this is unclear, but the more interventional nature of PDiv endotherapy compared to standard diagnostic ERCP may have contributed to this observation. In addition, the varied types of endotherapy chronology, and other variables that were not reported or recorded in studies (such as the use of rectal indomethacin) make it difficult to extract conclusions.
We sought to identify potential predictors of successful endoscopic therapy through multivariate analysis. Other than clinical presentation, two variables were noted to be associated with improved outcomes: dorsal duct stenting only and longer follow-up duration. In addition, male patients tended to have better response rates, although the difference did not reach statistical significance. It is likely that dorsal duct stenting may decrease the risk of post-ERCP pancreatitis [41] and potentially allows for more effective drainage in some patients. However, it is important to note that only 2 out of the 17 studies in the regression analysis employed dorsal duct stenting only, without a sphincteroplasty or sphincterotomy, as the main endotherapy. Furthermore, those studies were some of the earlier ones, done in 1990 and 1992. The reason why better outcomes were associated with a longer follow-up duration is unclear. Potential explanations include the elimination of the placebo effect with longer duration, more endotherapy sessions and frequent contact with medical providers.
The major limitation of the current analysis is the absence of high-quality, well-designed studies. The studies available are by and large single-center uncontrolled retrospective case series with a high risk of selection and reporting bias. In addition, the definition of success varied widely and lacked validity and reliability in a significant number of studies; subjective measures, such as patient-rated improvement in pain, were frequently employed to determine success [39]. All of the above factors explain the substantial heterogeneity observed within and across studies. It is important to note that we only included fully published studies in the English language and funnel plots indicated the presence of at least potential publication bias (mostly studies with a positive effect).
In conclusion, endoscopic therapy for PDiv is probably effective in a subset of patients who present with RAP. The benefit is less clear in patients with CP and/or PP. The post-ERCP pancreatitis rate is higher than average and should be quoted at 10%. The overall quality of the available data is poor, as a result of suboptimal study design and significant heterogeneity. High-quality prospective randomized trials, with standardized, objective, valid and reliable outcome measures are needed to establish the exact role of endoscopic therapy in the management of PDiv.
What is already known:
-
Pancreas divisum (PDiv) has been implicated in the pathogenesis of acute, recurrent and chronic pancreatitis as well as pancreatic type abdominal pain
-
Endoscopic therapy is frequently used to treat PDiv, but reported efficacies vary widely between authors
-
Endotherapy appears to be more effective in patients with recurrent acute pancreatitis
What the new findings are:
-
The pooled efficacy of endoscopic therapy in PDiv in the featured studies was 67.5%
-
Dorsal duct stenting and longer duration of follow up were the only factors associated with improved endotherapy success rates
-
The maximal therapeutic benefit was observed in patients who presented with recurrent pancreatitis, with a pooled efficacy rate of 76%. The therapeutic effect was equivocal in patients with chronic pancreatitis or pancreatic type pain
