Can the upper esophageal sphincter contractile integral help classify achalasia?

Introduction

High-resolution manometry (HRM) elucidates esophageal motility disorders via software analysis. The use of novel manometric measurements that constitute the Chicago Classification (CC) was recently expanded to the 3.0 version. Disorders that involve esophagogastric junction (EGJ) outflow obstruction are further classified into achalasia subtypes and EGJ outflow obstruction. Further, achalasia is defined by the presence of elevated integrated relaxation pressure and is divided into subtypes according to the different patterns of non-peristaltic esophageal pressurization [1].

Manometric profiles of the lower esophageal sphincter (LES) have been widely studied and are commonly used in several definitions of dysmotilities of the esophagus mentioned in CC v3.0. Calculated as amplitude × duration × length (mmHg·sec·cm) of the distal esophageal contraction exceeding 20 mmHg from the transition zone to the proximal margin of the LES, the distal contractile integral (DCI) has the potential to represent the contractile vigor of a specific region and has been widely established in the currently used format of HRM reports [1]. Recent publications introduce the EGJ-contractile integral (EGJ-CI), defined similarly to the DCI, as a more representative tool for evaluating the complex anatomy of the EGJ barrier in patients with achalasia and gastroesophageal reflux disease (GERD) before and after surgery, in patients off proton pump inhibitor therapy undergoing ambulatory pH monitoring, in non-responders to proton pump inhibitors, and among patients with abnormal acid exposure [2-4].

On the other hand, the utility of manometric analysis of the upper esophageal sphincter (UES) is not yet widely recognized. In fact, the CC does not use UES metrics in any dysmotility definition. Nevertheless, analysis of the UES could become mandatory in the future in terms of evaluation of esophageal deglutitive abnormalities, as it may play a key role in predicting the response to treatment. For instance, according to retrospective studies, abnormal UES parameters (most commonly hypertensive UES) among achalasia patients were associated with a lack of response to treatment [5,6]. Moreover, UES metrics were significantly decreased after balloon dilation in type II achalasia patients [7].

Manometry of the pharynx and the UES outlines the swallowing mechanism, reflecting both relaxation and closure of these anatomical structures. UES resting and residual pressures are the only measurements of the UES presented in the currently used HRM analysis [8]. However, asymmetry of the UES may require more detailed interpretation, mainly in the field of investigation of motility disorders of the esophagus. Application of the contractile integral index to the manometric profile of the UES may improve comprehension of the function of this sphincter, especially with regard to abnormal manometric studies such as those in patients with achalasia.

The aim of this study was to evaluate the possible association between the manometric profile of the UES and the subtypes of achalasia as defined by the CC, and to introduce the contractile integral of the UES (UES-CI), a parameter that precisely represents the peculiar anatomy and function of the UES in abnormal HRM tests.

Patients and methods

Patients manometrically diagnosed with achalasia from August 2015 to March 2016 were studied prospectively and their HRM analyses were reviewed retrospectively. Demographic data (age, sex) were collected. Based on a detailed medical history, any individual who had previously been treated either endoscopically or surgically for achalasia was excluded from the study. Patients included were >18 years old. All patients underwent HRM and were classified into achalasia subtypes according to CC v3.0. The relation between achalasia subtypes and manometric features was evaluated (see below for details). Additionally, we divided the patients into two subgroups of comparable size in order to compare their HRM characteristics: one group represented patients with type II achalasia and the other included patients with other types.

We also conducted the same measurements among a group of adult patients diagnosed with GERD and completed a case-control analysis between achalasia and GERD patients. None of these patients had any previous endoscopic or surgical history of the upper gastrointestinal tract.

HRM technique and analysis

HRM was performed after a 6-h fasting. A catheter with an outer diameter of 4 mm and 36 circumferential sensors spaced at 1 cm intervals (ManoScan360 High Resolution Manometry System, Sierra Scientific Instruments, Los Angeles, CA) was positioned below the EGJ through an anesthetized nasal canal. The system was calibrated to record pressures between −20 and 600 mmHg and data were collected at a sampling rate of 50 Hz (ManoScan Data Acquisition, Sierra Scientific Instruments). After a 30-sec period without swallowing in order to evaluate UES basal pressure (landmark), 10 wet swallows of 5 mL were applied in supine position.

HRM analysis was conducted using the ManoView software (Sierra Scientific Instruments). UES length (cm), UES resting pressure (mmHg) and UES residual pressure (mmHg) were recorded for each case. In addition to the standard HRM report, the UES-CI (mmHg·sec·cm) was calculated similarly to the DCI. The resting UES-CI (landmark CI) was calculated for three consecutive respiratory cycles as the total number of units of mmHg·sec·cm greater than 20 mmHg from the upper limit of the UES to the lower limit of the LES minus the total CI below the lower limit of the UES (Fig. 1). UES pressure is a robust manometric feature with respiratory variation. Therefore, the values were divided by the duration of the three respiratory cycles and CI was corrected for respiration (CI corrected for respiration in mmHg·cm). Mean CI was calculated as the mean value of the corrected CI of 10 wet swallows of each study starting 5 sec before UES relaxation and lasting for another 10 sec (Fig. 2).

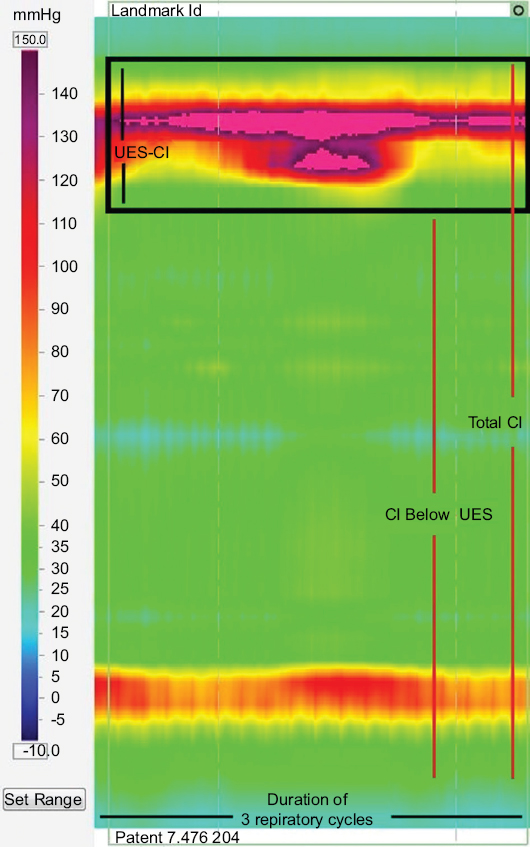

Figure 1 Calculation window for measurement of the upper esophageal sphincter (UES) contractile-integral (UES-CI) during landmark measurement. The UES-CI box (mmHg·sec·cm) includes the integral from the proximal limit of the UES to the distal point of the sphincter for three consecutive respiratory cycles (corrected for respiration)

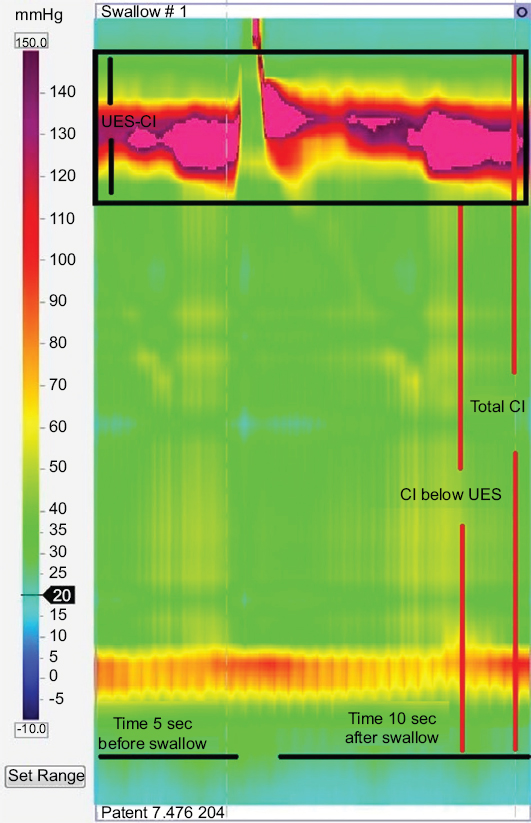

Figure 2 Measurement of the upper esophageal sphincter (UES) contractile-integral (UES-CI) for a separate swallow. The UES-CI box (mmHg·sec·cm) is positioned from the proximal to the distal limit of the UES for a total time extending from 5 sec before to 10 sec after the swallow, including the duration of UES relaxation and contraction

Results

Twenty-four consecutive adult patients (11 females, 13 males; mean age 55.29 years, range 19-86) were diagnosed with achalasia based on at least one HRM study between August 2015 and March 2016. Four patients were classified as achalasia type I; 14 as type II; and six as achalasia type III. We separated the patients with achalasia into two subgroups of comparable size: one group of patients with achalasia type II (n=14) and another group of patients with other types (n=10). Patients’ characteristics are presented in Table 1A.

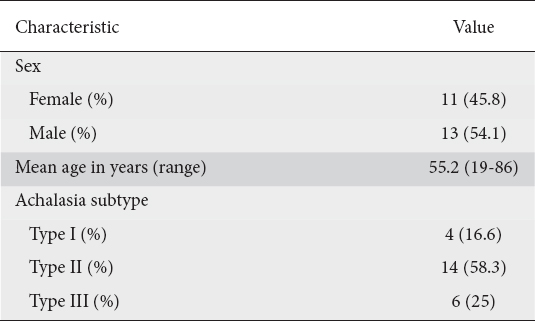

Table 1(A) Characteristics of patients with achalasia patients (n=24)

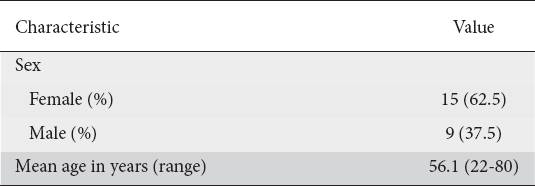

Table 1(B) Characteristics of patients with gastroesophageal reflux disease (n=24)

Patients in group II had significantly higher mean values of landmark CI compared to those in other groups (1768.9 vs. 677.1, P=0.03). Likewise, the mean CI and corrected CI measurements were significantly higher in group II (mean values 1827.1 vs. 3555.1, P=0.036, and 174.2 vs. 72.8, P=0.027, respectively). Another parameter that reached statistical significance was the UES resting pressure (mean values in type II 108.1 vs. 55.8 in non-type II patients, P=0.009). All other measurements (UES length, UES residual pressure) showed no significant difference between the two groups (Table 2).

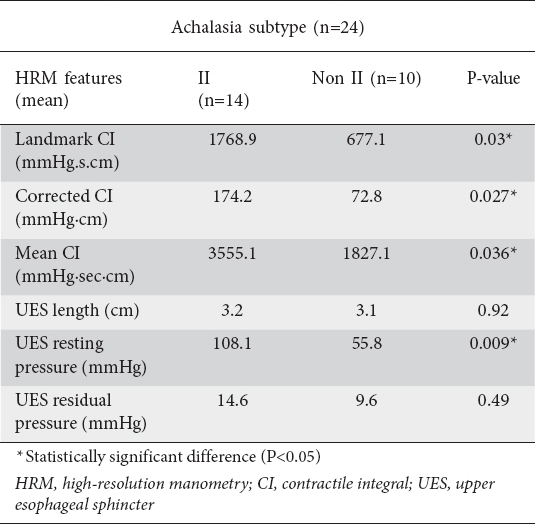

Table 2 HRM parameters of the UES among achalasia subtypes

We also enrolled 24 GERD patients (15 females, 9 males; mean age 56.12 years, range 22-80) as a control group (Table 1B). Demographic characteristics were similar among the two groups regarding age and sex. Mean UES resting pressure of the control group was 99.9 mm Hg, mean UES residual pressure was 3.7 mm Hg, mean landmark CI of the UES was 1397.9 mmHg·sec·cm, mean landmark CI corrected for respiration was 166.4 mmHg·cm and mean UES-CI was 2286.8 mmHg·sec·cm (Table 3).

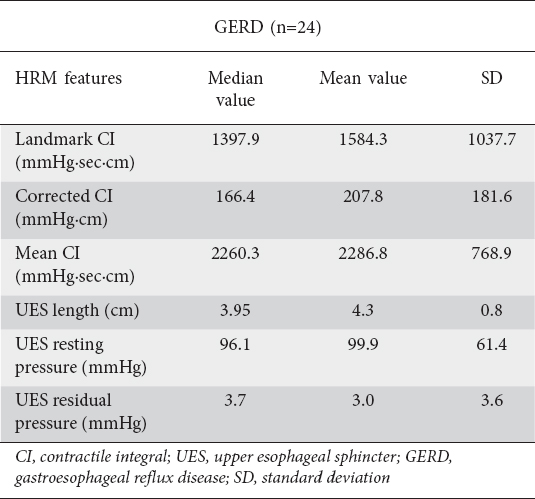

Table 3 HRM parameters of the UES in the control group (GERD)

Case-control analysis between achalasia and GERD patients revealed no statistically significant differences between the two groups apart from UES length, which was greater in GERD patients compared to achalasia patients (mean value 4.3 vs. 3.2, P<0.001) and UES residual pressure, which was more than four times higher in achalasia patients (mean value 12.5 vs. 3.0, P=0.01) (Table 4).

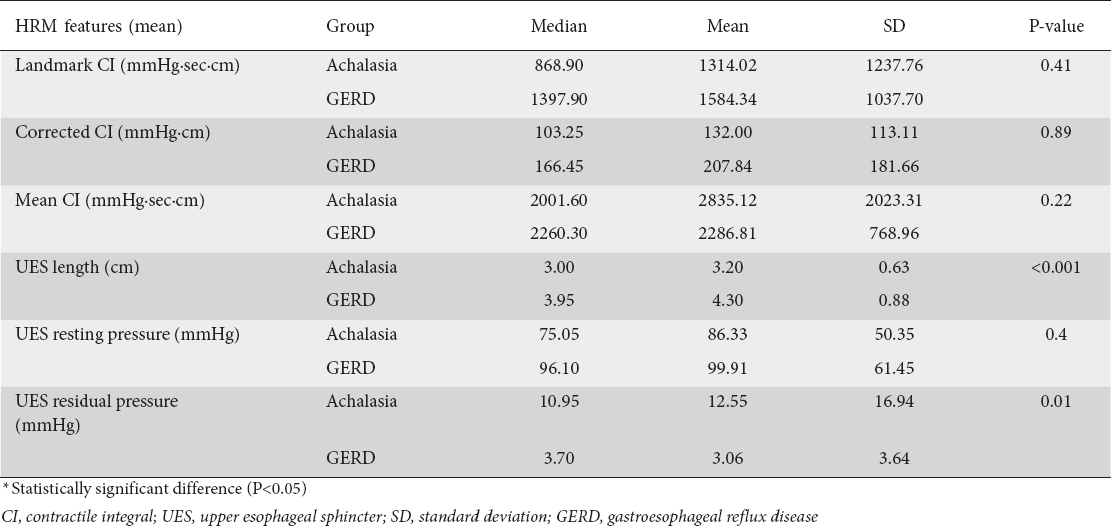

Table 4 Case-control analysis (achalasia vs. GERD) of the HRM parameters of the UES

Discussion

HRM has been established as a sine qua non tool in the field of diagnosis, treatment and follow up of motility disorders of the esophagus. HRM offers the advantage of estimation of the manometric profile of the esophagus by recording color pressure topography plots. Software of the HRM analyzes manometric values for both sphincters and body. The CC, first published in 2009 by the International HRM Working Group and recently expanded and updated in 2014, has gained acceptance worldwide. CC v3.0 elucidates two main categories of motility abnormalities of the esophagus: disorders of the EGJ outflow and disorders of peristalsis [1].

Achalasia is the most common motility disorder of the esophagus with an incidence of 1 case per 100,000 [9]. Weight loss, dysphagia, regurgitation and chest pain are the predominant symptoms of the disease and together compose the Eckardt score. HRM is the gold standard in the diagnosis of achalasia. Based on the patterns of non-peristaltic esophageal pressurization along with elevated values of the integrated relaxation pressure, CC v3.0 classifies achalasia into three subtypes. Type I achalasia is associated with 100% failed contractions without esophageal pressurization; type II achalasia represents at least 20% of swallows with panesophageal pressurization; and type III achalasia is followed by at least 20% of swallows with premature contractions.

Although the combination of HRM with CC has improved the diagnosis of several functional abnormalities of the esophagus, analysis of the UES has been poorly studied so far. In practice, the CC does not include UES characteristics; therefore, there is no disorder in the CC that takes account of the function of the UES [10]. The UES is known as an approximately 3-cm high pressure zone between the pharynx and the proximal esophagus. Pharyngo-esophagogastric function refers to the coordinated pharyngeal and upper esophageal relaxation during swallowing, the manometric reflection of the activity of the striated muscles of the pharynx and cervical esophagus. Although the distal upper gastrointestinal tract consists of smooth muscles, the UES correlates with striated muscle physiology [11]. Three-dimensional HRM study of the UES, mainly in healthy patients, revealed a significant variance of UES characteristics and confirmed the asymmetrical pharyngeal anatomy [12]. However, only a few publications have applied UES analysis to abnormal studies.

HRM interpretation according to the CC provides limited characteristics of the UES. More precisely, mean UES resting pressure, length and mean UES residual pressure are calculated. Lately, there have been a few publications proposing normal values for the pharynx and the UES function in asymptomatic patients [11-14]. Herein, abnormalities such as incomplete relaxation, cricopharyngeal bar, elevated baseline pressure or discoordination between the pharynx and the proximal esophagus may be detected [15,16]. It has been assumed that UES abnormalities are more common among patients with achalasia, mainly with regards to hypertension, and this finding may be predictive of a dismal response to treatment [5,16].

Although the aforementioned features provide invaluable information about the UES, estimating the total pressure of a specific area gives a more complete image of the sphincter than the mean values of single pressure points. A study by Mielens et al proposed investigation of the integrity of the UES [17]. DCI is an HRM parameter that integrates time, pressure and distance along the esophagus, from the proximal esophagus to the proximal point of the LES. It is measured by calculating the total surface >20 mmHg in a specific area of the analysis. As a single number, it may identify both hypercontractility and hypocontractility of the lower esophagus and LES during deglutition. The EGJ-CI, similar to the DCI, was recently introduced in order to assess the EGJ barrier function among patients diagnosed with achalasia or GERD before and after surgery [2-4,18,19]. Hoshino et al [3] first presented the adjustment of the DCI to the EGJ (EGJ-CI) over a 10-sec interval, while Nicodème et al [4] measured the EGJ-CI independently of respiration 2 mm Hg above the gastric baseline, correcting for the respiratory cycle and taking account of the crural component and the duration of the respiratory cycle. This appears to be a more representative way of estimating LES contractility, in view of the complex nature of the components of the sphincter, including the diaphragmatic crus [3,4]. Gor et al proved that LES-CI calculated for a single respiratory cycle was equally reliable as the metric of Nicodème et al and proposed simplifying the feature [18].

In contrast, our study confirmed that UES function appears to be independent from respiration, as the landmark UES-CI was significantly higher in the type-II group of patients compared to the non-type-II group, even before correction for respiration. This can be clearly explained based on the anatomy of the UES. Mean CI and UES resting pressure were also found to be higher in patients with achalasia type II. A possible explanation could be the manometric profile of this type of achalasia. Since panesophageal pressurization may lead to a greater risk of aspiration, high UES pressures in this group during both resting and swallowing could be attributed to a protective mechanism. This hypothesis was also confirmed by the studies of Blais et al and Menezes et al, who concluded that patients diagnosed with achalasia type II present with higher UES residual pressures compared to the other types [20,21]. However, the introduction of the landmark UES-CI may be a more reliable measurement, aiming to eliminate the limitations of the transient calculation of the resting and residual pressures of the UES.

Case-control analysis concluded that UES residual pressure was four times higher in achalasia patients compared to GERD patients (12.55 vs. 3.6, P=0.01) and that UES length was smaller among achalasia patients (3.2 vs. 4.3, P<0.001). Although the clinical significance of the second finding seems unclear, the values of UES residual pressure could suggest that achalasia patients suffer from a higher risk of aspiration due to incomplete clearance of the esophageal lumen and stasis. In GERD, on the other hand, esophageal clearance is considered to be complete, apart from cases in which impairment of the contractility of the body of the esophagus caused by chronic reflux is diagnosed [22].

In this study, we evaluated the UES-CI as a novel tool for evaluating patients diagnosed with achalasia and showed that achalasia type II is associated with greater values of UES-CI compared to the other types. UES resting pressure was also found to be increased among this group of achalasia patients, while UES residual pressure was significantly higher in achalasia patients compared to the control group of GERD patients. UES-CI could have the potential to further improve our understanding of UES function in the field of esophageal motility abnormalities. Further prospective studies are mandatory to evaluate the actual clinical application of the UES-CI.
