Introduction
Benign gastrointestinal (GI) stricture can arise in any part of the GI tract as a result of various etiologies. However, it usually occurs in the esophagus and pyloric channel. Anastomotic sites are also potential locations for benign GI strictures [1]. Endoscopic dilation, incisional therapy, intralesional steroid injection and self-expandable metal stents (SEMSs) are the available treatment modalities for GI stricture [2-4]. Although these treatments are safe and effective, there are certain drawbacks: endoscopic dilatation is associated with high recurrence, requiring multiple treatment sessions [5], while SEMSs are vulnerable to stent migration [6]. SEMSs are estimated to have a 30-40% migration rate or greater [7,8], which could be minimized by fastening with over-the-scope clips [9] and endoscopic suturing. [10]. However, stent migration rates still exceed 15% [1].
The lumen-apposing metal stent (LAMS) (Axios stent, Boston Scientific, Marlborough, Mass.) is a saddle-shaped stent (10 mm in length, 10 mm and 15 mm in diameters, with wide flanges of 23 mm and 28 mm), which achieves lumen apposition because of its bilateral anchoring flanges, thus decreasing the risk of stent migration [11]. LAMSs were initially used to drain pancreatic fluid collections [12]; however, they have increasingly been utilized in the management of benign GI stricture because of their anti-migratory lumen-apposing design.
In this review article, we have summarized case reports, case series and retrospective studies to evaluate the safety, efficacy and feasibility of LAMS in the management of benign GI stricture.
Materials and methods
An extensive search of the English language literature until July 2017 was performed, using PubMed and Google Scholar to identify the peer-reviewed original and review articles based on the key words “benign stricture”, “gastrointestinal stricture” and “lumen-apposing metal stent”. Only articles that concerned human study subjects were selected. The reference lists of relevant studies were manually searched to identify additional further appropriate publications. The search yielded 9 case reports [13-21], 1 case series [22], and 2 retrospective studies [1,11]. The stricture etiology, characteristics, location, device details, procedure details, success rate, complications, and limitations in each study were reviewed.
Results
Twelve original articles were included in this review [1,11,13-22]. Two retrospective multicenter studies from the USA [1,11]; 9 case reports, 7 from the USA [13-16,18,20,21] and 2 from Spain [17,19]; and 1 case series from the USA [22] were included in the review. In this article, we reviewed 70 patients from the 12 original studies who received LAMS for refractory (68/70) or treatment-naïve (2/70) benign GI strictures. The technical and clinical success rates were 98.6% (69/70) and 79.7% (55/69), respectively. Endoscopic placement, with or without fluoroscopic guidance, was generally successful, with only a minority requiring endoscopic ultrasound (EUS) guidance where the lumen was completely obscured. The majority of strictures were short (≤1 cm), but comparable technical and clinical success was noted in isolated cases with long strictures, where 2 overlapping LAMSs were placed. The overall study population had a failure rate of 21.5% (14/69), attributed to either lack of follow up, or to persistent or de novo symptoms requiring stent removal/exchange or surgical referral. One perforation (1.4%), five stent migration events (7.1%), two bleeding events (2.9%) and two de novo strictures proximal to the LAMS (2.9%) were reported for the entire study cohort. No mortality was attributable to LAMS placement. The results from all the studies are summarized in Table 1.

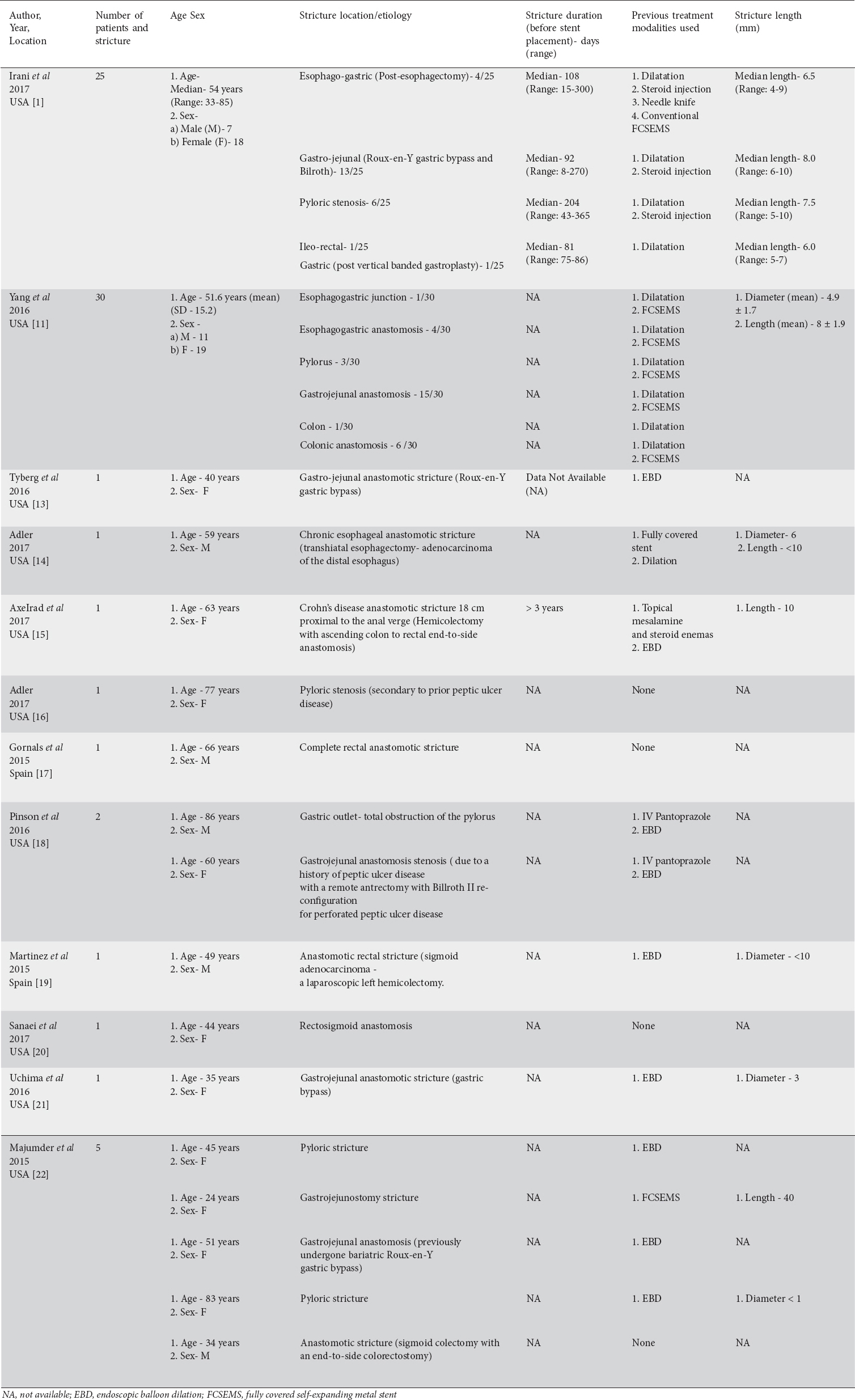

Table 1 Descriptive summary of individual studies
Discussion
Patient characteristics
GI strictures usually present with symptoms of dysphagia, abdominal pain, cramping, weight loss or other symptoms of obstruction. The age of the patients ranged from 18-86 years across the included studies [1,11,13-22] and the majority (67.1%) were female [1,11,13-22].
Stricture characteristics
Etiology and location
In this review, all 12 studies included patients with benign GI stricture [1,11,13-22]. These strictures were distributed along the entire GI tract. Of the 70 strictures, 8 were at an esophagogastric anastomotic site [1,11], 32 were at a gastrojejunal anastomotic site [1,11,13,14,18,21,22], 13 were at the pylorus [1,11,16,22], 7 were at a colon anastomotic site [11,22], 2 were at a rectal anastomotic site [19,20], while 1 stricture was located at each of the following locations: ileorectal anastomotic site [1], gastric [1], esophageal anastomotic site [14], colorectal anastomotic site (Crohn’s disease) [15], esophagogastric junction [11], colon [11], rectosigmoid anastomotic site [20], and gastrojejunostomy site [22]. The majority of the strictures were post-surgical anastomotic strictures [1,13-15,17-22], but there were also strictures secondary to long-standing inflammation, such as peptic ulcer disease [11,16,18,22]. Surgical interventions, including esophagectomy, Roux-en-Y bypass, gastroplasty, Billroth II and colectomy, performed to treat primary malignancy, inflammatory bowel disease or obesity, were the most common underlying etiology [1,13-15,17-22].
Length, diameter, and chronicity
Only a few authors reported the length and/or diameter of the stricture and this varied widely across different studies and within each study [1,11,14,15,19,21,22]. The longest stricture was reported to be 4 cm in length at a gastrojejunal anastomosis [22]. In this particular case, the authors described the use of two overlapping LAMSs to allow complete bridging of the stricture [22]. The majority of the other strictures were ≤1 cm in length [1,11,14,15]. The luminal diameter of all strictures with available data was reported as less than 10 mm [11,14,19,21,22].
Only two studies reported the duration of the stricture [1,15], which generally ranged from 81 to 204 days [1], though in one case the stricture was reported to be there for more than 3 years [15].
Prior interventions
Although 3 studies reported no use of prior alternative treatment modalities [16,17,20], in the majority of the cases reviewed the strictures were long-standing and various other treatment modalities had been attempted before LAMS was utilized [1,11,13-15,18,19,21,22]. One study mentioned the use of steroid injections [1], one study used a topical mesalamine and steroid enema [15], 1 study reported the needle knife technique for esophagogastric anastomotic strictures [1], 4 studies described conventional fully covered self-expanding metal stents [1,11,14,22], and 9 studies mentioned endoscopic dilation [1,11,13-15,18,19,21,22] as a first-line therapy in the management of various benign GI strictures. Repeated dilations of a persistent/recurrent stricture pose a higher risk of bowel perforation with each attempt and a LAMS may be a safer and efficacious alternative. Patient and stricture characteristics from each study are summarized in Table 2.

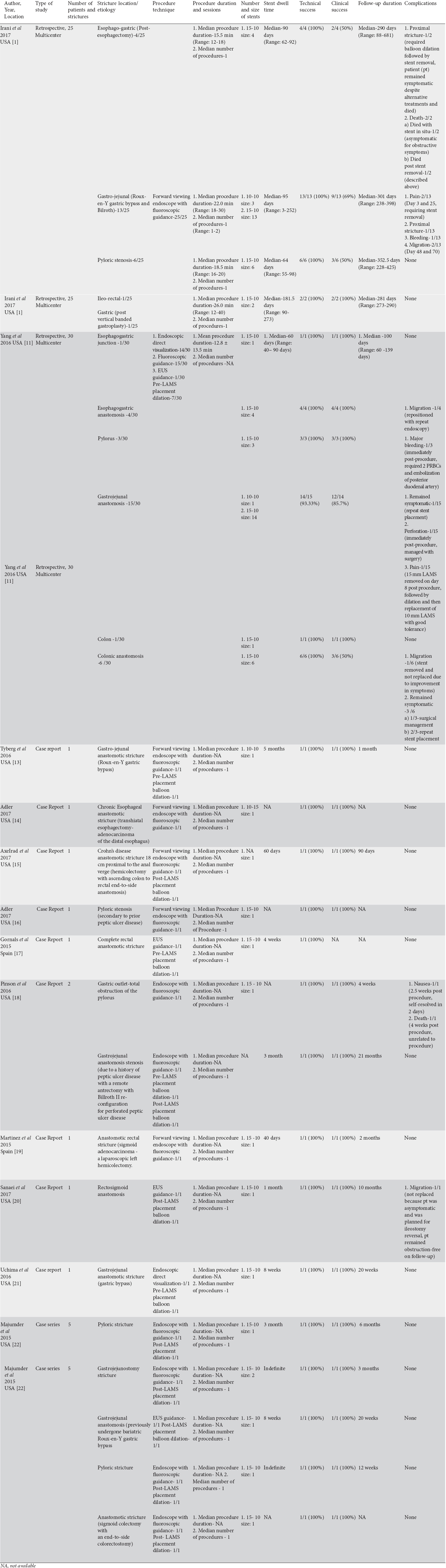

Table 2 Patient and stricture characteristics from each individual study
Procedure characteristics
Technique
The LAMS is a novel saddle-shaped stent. It is 1 cm long, 10 or 15 mm in diameter and has wide flanges of 23 mm and 28 mm diameter on its ends. Placement of a LAMS across a stricture requires either direct visualization via endoscopy, with [1,11,13-16,18,19,22] or without [11,21] fluoroscopic assistance, or an EUS-guided approach [11,17,20,22]. If the diameter of the stricture lumen is too narrow or obstructed to allow safe passage of a guide-wire, authors have described using EUS to confirm the lumen across the stricture. In such a scenario, the lumen on the other side is preferentially filled with fluid to allow distention and visualization by EUS. This is followed by insertion of needle a across the stricture, followed by the guide-wire and LAMS placement. For both the endoscopic and the EUS-guided approach, a few studies report preferentially dilating the stricture with a balloon to allow LAMS placement [11,13,17,18,21]. In addition, a minority of studies also report balloon dilation post-LAMS placement to distend the LAMS to its maximum diameter [15,18,20,22].
In our review of 70 patients, 72.9% (51/70) underwent fluoroscopy-guided endoscopy, 21.4% (15/70) direct visualization with endoscopy and 5.7% (4/70) had EUS-guided placement of the LAMS across the stricture site. Pre-LAMS balloon dilation was performed in 10 patients [11,13,17,21], post-LAMS dilation in 7 [15,20,22], while one patient had both pre- and post-LAMS balloon dilation [18]. Fig. 1 depicts the placement of a LAMS across a gastrojejunal anastomotic stricture.
Figure 1 Placement of a lumen-apposing metal stent (LAMS) for benign gastrointestinal stricture. (A) Gastrojejunal anastomotic stricture. (B) Insertion of the LAMS over the guide-wire under fluoroscopy. (C) Endoscopic view of the successfully placed LAMS. (D) Follow-up endoscopy (54 days after insertion) showing patent LAMS across gastrojejunal anastomosis. (E) Long-term follow up (45 days after stent removal) confirming patent gastrojejunal anastomosis
Duration
Only two studies mentioned the procedure duration for LAMS placement. The median procedure duration across the studies was 19.5 min ranging from 15.5-26 min [1,11].
Stent in situ duration
Stent dwell time depended on the etiology and indication for the LAMS placement and accordingly varied from 4 weeks to an indefinite time [1,11,13-22]. LAMS was used as the primary treatment modality, a bridge to surgery, or as a palliative measure. Procedure and stent details from each individual study are summarized in Table 1.
Outcome
Technical success and failure
Technical success was defined as the ability to place a LAMS across the stricture. Of the 70 patients treated for stricture, technical success was achieved in 69 (98.6%) [1,11,13-22]. In the single failure, perforation requiring surgical management was reported. [11]. The majority of studies reported a 100% success rate on an individual basis [1,13-22]. There was no difference in technical success for strictures of different etiology or at different locations along the entire GI tract [1,11,13-22]. In addition, strictures of all lengths, diameters, chronicity and with prior failed interventions had similar technical success rates across all the studies [1,11,13-22].
Clinical success and failure
Clinical success was described in term of the alleviation of GI obstructive symptoms, such as nausea, vomiting, constipation, abdominal pain and abdominal distension. Follow-up duration varied from as short as 30 days to as long as 21 months [1,11,13-22]. The composite clinical success rate for the study cohort was 79.7% (55/69). The majority of individual studies had a 100% success rate over the study-specific follow up [13-22]. Irani et al and Yang et al reported clinical success rates of 64% (16/25) and 82.8% (24/29), respectively [1,11]. The majority of patients (94.2%, 65/69) had some form of prior treatment for their stricture. The clinical success rate for treatment-naïve patients was 100% (4/4), while for refractory strictures it was 78.5% (51/65). The failures (14/65- 21.5%) were attributed either to lack of follow up at the study-specific time interval because of death (1/14) [1], or to the persistence of symptoms (13/14) [1,11] requiring either early stent removal, replacement or surgery referral.
Complications
On an individual basis, 8 studies reported no complications [13-17,19,21,22]. The composite complication rate could not be calculated for the study cohort because multiple adverse events were recorded per patient, which would lead to an erroneously high complication rate. To avoid this systemic error, we calculated individual event rates for the whole study cohort.
Perforation
One patient (1.4%) developed perforation at the time of LAMS placement [1,11,13-22], categorized by the study as technical failure [11]. The patient was successfully managed with surgery.
Abdominal pain
Four patients (5.7%) had persistent symptoms [1,11,13-22]; 75% (3/4) were managed with repeat stent placement and 25% (1/4) were referred for surgical treatment [11]. Three patients (4.3%) developed new-onset abdominal pain on day 3, day 8 and day 25 post-LAMS placement, requiring stent removal [1,11]. One of the three patients initially had a 15 × 10 mm stent, replaced with 10 x 10 mm stent, resulting in good tolerance [11].
Stent migration
Five patients (7.1%) exhibited stent migration [1,11,13-22]. Of these, two were asymptomatic (requiring no reposition or replacement) [11,20], one patient underwent endoscopic repositioning [11], and for the other two no specific management was reported [1].
Bleeding
Two patients (2.9%) had bleeding post-LAMS placement [1,11,13-22]. One patient had a significant bleed requiring embolization of the posterior duodenal artery [11]. The other bleeding event was associated with stent migration [1].
De-novo proximal stricture
Two patients (2.9%) were reported to have developed a new stricture at the proximal end of the LAMS [1,11,13-22]. One of these patients required balloon dilation of the proximal stricture to allow LAMS removal [1].
Concluding remarks
Benign GI strictures of ischemic and inflammatory etiology can develop anywhere in the GI tract, depending on the site of previous surgery (anastomosis) or as a result of peptic ulcer disease. Endoscopic balloon dilation and savary dilation represent the primary go-to treatment modalities. Intra-lesion steroid injection, fully covered self-expandable metal stents, biodegradable stents and endoscopic incision therapy are available options for the treatment of refractory strictures, with a variable response. LAMSs, originally designed for pancreatic fluid collection drainage, appear to be a beneficial option for the management of refractory GI strictures because of their saddle-shaped design. In this article, we reviewed 70 patients from 12 original studies who received LAMS for refractory (68/70) and treatment-naïve (2/70) benign GI strictures. Technical and clinical success rates were 98.6% (69/70) and 79.7% (55/69) respectively. An endoscopic approach, with or without fluoroscopic guidance, allowed successful placement, with only a minority of cases requiring EUS guidance where the lumen was completely obscured. The majority of strictures were short (≤1 cm) but comparable technical and clinical success were noted in isolated cases with long strictures where 2 overlapping LAMSs were placed. For the overall study population, the failure rate was 21.5% (14/69) and was attributed to either a lack of follow up, or to persistent or de novo symptoms requiring stent removal/exchange or surgical referral. One perforation (1.4%), five stent migration events (7.1%), two bleeding events (2.9%) and two de novo strictures proximal to the LAMS (2.9%) were reported for the entire study cohort. No mortality was attributable to LAMS placement. Esophagogastroduodenoscopy or EUS-guided placement of a LAMS is a technically feasible and safe procedure with good clinical outcomes for benign refractory GI strictures. Head-to-head comparison trials with alternative treatment modalities are needed to ascertain any superiority or inferiority of one over the other.
