Aristotle University of Thessaloniki, Thessaloniki; Democritus University of Thrace, Alexandroupolis; ENARGEIA Medical Ltd, Xanthi, Greece
aFourth Department of Internal Medicine, Aristotle University of Thessaloniki, Thessaloniki (Adonis A. Protopapas, Ioannis Goulis); bFirst Department of Internal Medicine, Democritus University of Thrace, Alexandroupolis (Theodora Mylopoulou, Kiriaki Vogiatzi, Konstantinos Mimidis); c“ENARGEIA” Medical Ltd, Xanthi (Vasileios P. Papadopoulos), Greece
Introduction: According to the Baveno VI workshop, patients with compensated advanced liver disease, platelet count (PLT) >150,000/μL and liver stiffness measurement (LSM) <20 kPa can avoid screening endoscopy for high-risk varices (HRVs). The purpose of this study was to validate these criteria in a multicenter Greek cohort and consider other approaches that may further decrease the number of endoscopies.
Methods: We prospectively enrolled patients with advanced liver disease (defined as LSM >12 kPa) and evaluated them according to the Baveno VI criteria. Exclusion criteria were splanchnic vein thrombosis, use of β-blockers, and esophageal varices. Screening endoscopy was conducted within 6 months of liver stiffness and laboratory measurements.
Results: One-hundred seven consecutive patients were enrolled in the study to undergo LSM and screening endoscopy. Of these, 13 met the Baveno VI criteria (12.1%); none of the latter had HRVs. Additional parameters were examined, among which the quotient PLT/log10LSM exhibited the largest area under the curve; concerning the latter, values ≤122,000 μL-1 x kPa-1 predicted high-risk varices with 100% sensitivity and negative predictive value (NPV), preventing 20.6% of patients from unneeded screening endoscopy (P=0.003). Moreover, values ≤92,000 μL-1 x kPa-1 exhibited 86% sensitivity and 94% NPV, preventing 44.9% of patients from unneeded screening endoscopy (P=0.001), while maintaining a tolerable percentage of overlooked patients with HRVs (6.3%).
Conclusions: The Baveno VI criteria were successfully validated in our study. The quotient PLT/log10LSM can be used to further decrease the number of screening endoscopies in patients with advanced liver disease.
Keywords: Baveno VI, varices, transient elastography, screening, platelets
Development of esophageal varices is a significant and common complication of portal hypertension in cirrhotic patients. In the past, guidelines recommended screening of every cirrhotic patient for esophageal or gastric varices [1]. However, the emergence of transient elastography (TE) as a screening tool for cirrhosis and clinically significant portal hypertension (CSPH) has prompted physicians to search for noninvasive tools able to identify patients with varices without the need for endoscopy. A number of studies combined several noninvasive markers, such as platelet count (PLT), liver stiffness, spleen size, and spleen stiffness, to identify patients who can avoid screening endoscopy for esophageal varices [2-6].
These scientific endeavors culminated in the Baveno VI workshop, which issued new recommendations regarding the diagnosis and management of CSPH. According to these guidelines, patients with compensated advanced liver disease (cALD), characterized by liver stiffness <20 kPa in combination with a PLT >150,000 /μL are at very low risk of presenting high-risk varices (HRVs), a term used to define esophageal varices that need therapeutic intervention [7]. Therefore, in that specific group of patients, preventive endoscopy of the upper gastrointestinal tract can be avoided. Since the publication of these guidelines, there have been several studies that focused on validating these guidelines and even some that have tried to develop similar criteria. Amongst these, there was a study that successfully expanded the Baveno VI criteria by setting cutoff values at 110,000 /μL for PLT and 25 kPa for LSM [8].
In the present study, we evaluated liver stiffness measurements and PLT, as well as other clinical and laboratory findings, in an effort to further extend our knowledge in this field. Our aim was to validate the Baveno and expanded Baveno VI criteria and investigate whether a different set of criteria based on a combination of clinical and laboratory findings could achieve better outcomes in identifying cirrhotic patients who can avoid screening endoscopy for esophageal varices.
Consecutive patients with cALD, derived from 2 centers, were enrolled in the study. The inclusion criteria specified a diagnosis of chronic liver disease and LSM >12 kPa, while the exclusion criteria were the presence of splanchnic vein thrombosis, previous use of β-blockers, a history of esophageal varices, and acute hepatitis (viral or alcoholic). The study was conducted in accordance with the Helsinki declaration [9]. For each enrolled patient, parameters included in the Baveno VI workshop criteria were collected, as well as a number of other clinical and laboratory parameters, such as cause of cirrhosis (chronic viral hepatitis B/C, alcohol, non-alcoholic fatty liver disease, etc.), Child-Pugh score, liver stiffness measurement (original data and logarithmic transformation), PLT, age, and sex. The parameters mentioned above were correlated with the presence and severity of endoscopically documented esophageal varices. Varices ≥F2 in size, gastric varices, and varices with red spots were considered to qualify as HRVs. Τo achieve optimal correlation between endoscopic, laboratory and LSM data, the tests for every patient were conducted within a 6-month period.
TE was conducted using Fibroscan® (Echosens, Paris, France). A total of 10 valid measurements were obtained from each patient using an M-size probe. The measurements were required to have ≥60% success rate and an interquartile range to median ratio ≤30%, compatible with what is proposed by international guidelines [10-12].
Chi-square test was used for comparisons between expected and observed frequencies, while McNemar’s test was used to determine any differences in a dichotomous dependent variable between the 2 related groups (specifically, to compare the diagnostic accuracy measures of the different criteria used to evaluate HRVs). In the case of residuals smaller than 5, Fisher’s exact test was used. Student’s t-test was used for comparison of continuous variables between 2 groups. The Levene test was used for comparison of variances between groups. Analysis of variance was used for comparison of continuous variables between 3 or more groups. In cases where the Levene test was statistically significant, either the Dunnett C or the Scheffé test was used to discriminate differences between groups. Otherwise, the LSD test was used. Binary logistic regression was used to predict the relationship between independent predictors and the dependent variables, where the dependent variable is binary. Receiver operating characteristic (ROC) curves were used to evaluate the diagnostic ability of binary variables; Youden’s J index (sensitivity + specificity -1) was used for estimation of the best cutoff. Sensitivity, specificity, positive predictive value (PPV) and negative predictive value (NPV) were calculated and expressed with 95% confidence intervals (CI). Mean values (N) are given with at least 2 significant digits and are accompanied by their standard errors (SE). The level of statistical significance was set to P<0.05. The Bonferroni correction was applied when multiple comparisons were performed simultaneously, limiting the level of statistical significance to a=0.05/m; m denotes the number of comparisons performed. All statistical analyses were supported by the SPSS 20.0 software package (IBM Corp. ©).
One-hundred seven consecutive patients with cALD, 65 men and 42 women, 63.7±1.2 (30-87) years old, were enrolled in the study. All patients underwent screening esophagogastroduodenoscopy (EGD) and TE (TE).
Regarding the underlying cause of cALD, 26 (24.3%) had a history of alcoholism, 49 (45.8%) of chronic viral hepatitis B/C, 23 (21.5%) of other clinical conditions (including non-alcoholic fatty liver disease, autoimmune hepatitis, primary biliary cirrhosis etc.), while 11 (10.3%) had cryptogenic cirrhosis; 2 patients had multiple causes. For the severity of the liver disease, LSM revealed a mean value of 30.7±1.71 kPa (log10: 1.43±0.02) and a mean Child-Pugh score of 5.69±0.15 (Child-Pugh A: 87.4%, Child-Pugh B: 9.2%, Child-Pugh C: 3.4%; data refer to 87 patients) was observed. PLT was 129.0±6.3 x 103 /μL. Twenty-two patients (20.5%) exhibited esophageal varices needing therapeutic intervention (F2/F3: group A), 34 patients (31.8%) had small varices without red spots (F1: group B) while 51 (47.7%) had portal gastropathy or normal endoscopic findings (F0: group C). A summary of the descriptive data is presented in Table 1.

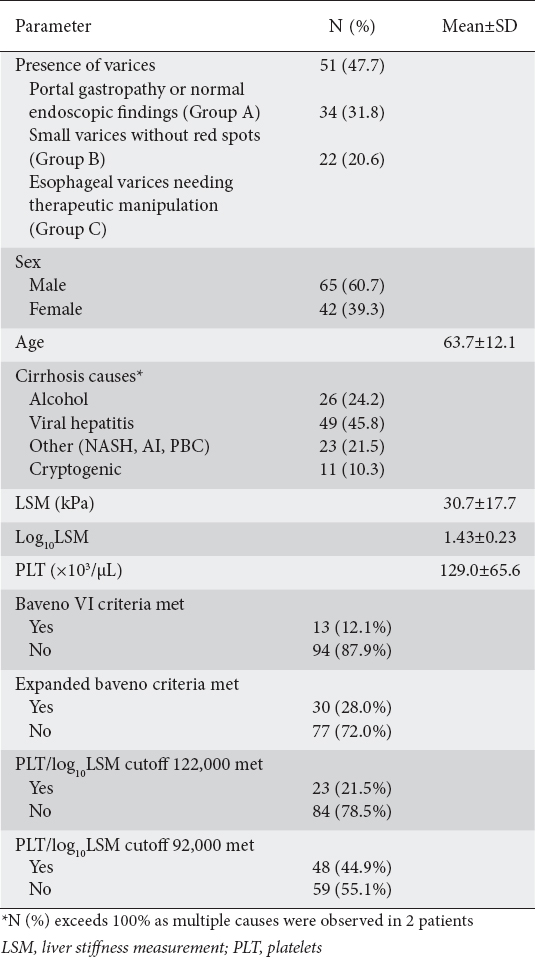

Table 1 Descriptive statistics of patients enrolled in the study (n=107)
Comparing patients needing treatment to patients not needing treatment, no difference was found in age (P=0.219), sex (P=0.504), cause of cirrhosis (P=0.716), Child-Pugh stage (P=0.297), Child-Pugh score (P=0.398), liver stiffness measurement (P=0.093), or the logarithm of liver stiffness (P=0.081). However, PLT values differed between groups: patients not needing treatment had 138.5±7.4 x 103/μL while patients needing treatment presented lower PLT (92.2±7.9 x 103/μL) (P=0.003). These values are presented in Table 2.

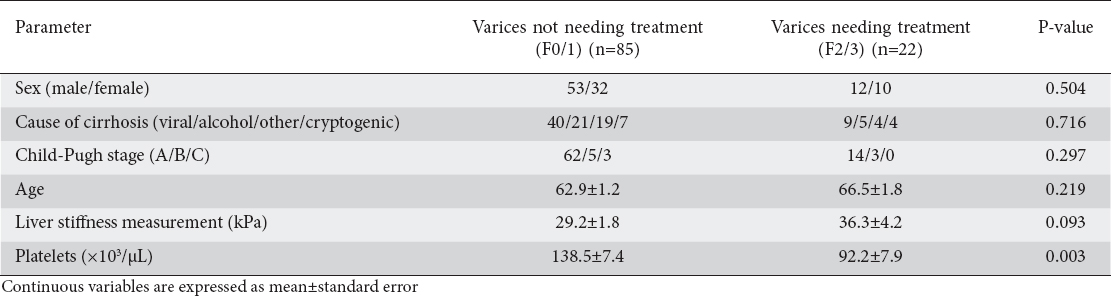

Table 2 Characteristics of patients who needed treatment versus patients who did not
In an effort to validate the Baveno VI criteria in our patients, we found that 13 of them had PLT values >150,000 μL and liver fibrosis <20 kPa, while 94 did not. Of the 13 patients who met the Baveno VI criteria, none needed treatment based on endoscopic findings, while of the 94 patients who did not meet the Baveno VI criteria, 22 needed treatment, as proven by EGD (1-sided P=0.041, 2-sided P=0.066). In our study, the absence of the Baveno criteria predicted the detection of HRVs with 100% sensitivity, 15% specificity, 23% PPV, and 100% NPV; by implementing the Baveno VI criteria, 12.1% of our patients would have avoided screening endoscopy.
Regarding the implementation of the expanded Baveno criteria to our study population, there were 30 patients who met the criteria and 77 who did not (n=107). Of the 30 patients who met the expanded Baveno VI criteria, 1 needed treatment based on endoscopic findings, while of the 77 patients who did not meet the expanded-Baveno criteria, 21 needed treatment, as proven by EGD (P=0.006). The absence of the expanded Baveno criteria achieved 96% sensitivity, 34% specificity, 27% PPV and 97% NPV for detection of HRVs. By implementing the expanded Baveno VI criteria, 28.0% of the patients would have avoided EGD, one of them (3.3%) erroneously (Fig. 1).

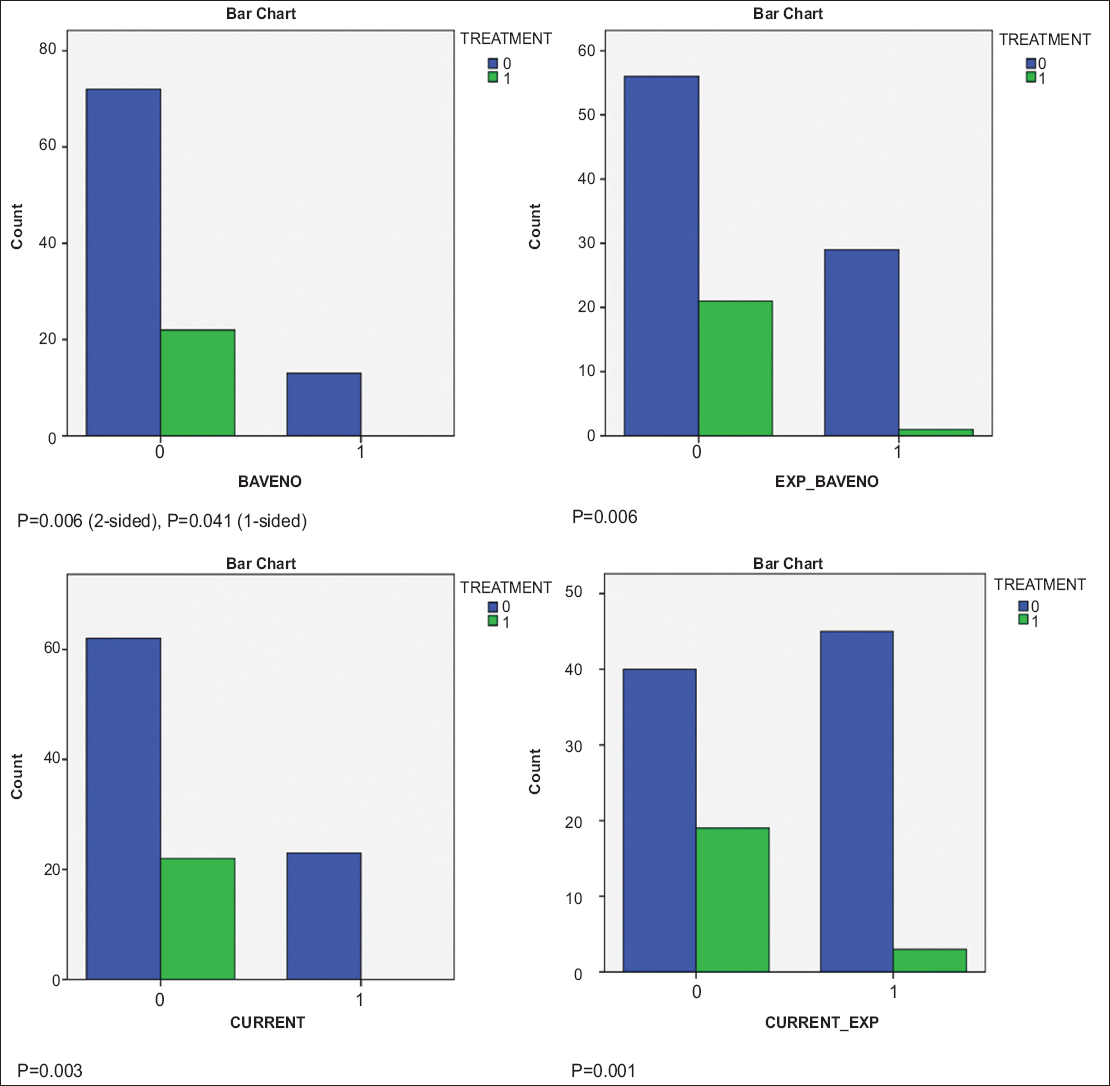

Figure 1 Evaluation of Baveno (top left), expanded Baveno (top right), current (bottom left) and expanded current (bottom right) criteria based on data of the present study. Bars on the left side of charts refer to patients where criteria are absent, while bars on the right side of charts refer to patients where criteria are met (blue: patients not needing treatment; green: patients needing treatment)
In relation to the above results, we further proposed new parameters of substantial prognostic value regarding the detection of HRV, involving PLT, LSM, and age values (absolute, logarithmic or inverse). These parameters were evaluated by univariate analysis and are presented, along with all detailed data, in Table 3. Furthermore, a binary regression model including these parameters gave a significance of P<0.05 in multivariate analysis (with the exclusion of PLT in order to avoid collinearity due to the concomitant presence of log10PLT). From both univariate and multivariate analyses, the ratio PLT/log10LSM proved to be the most informative. Additionally, relevant ROC curves were plotted (Fig. 2). The area under the curve (AUC) and the statistical significance level for each curve were computed, as shown in Table 4. The results indicate that the ratio PLT/log10LSM exhibited the larger AUC (0.726) and the highest level of statistical significance (P=0.001) (Fig.3). PLT/log10LSM ≤122,000 μL-1 x kPa-1 (Youden’s J=0.271) predicted the detection of HRV with 100% sensitivity, 26% specificity, 27% PPV and 100% NPV (P=0.003). By adopting this cutoff, 20.6% of our patients would have avoided screening EGD, as none of the 22 patients who met the abovementioned criterion needed treatment based on endoscopic findings, while of the remaining 85 patients 23 needed treatment, as proven by EGD. This was a statistically significant improvement in the number of endoscopies avoided (P=0.006), compared to the application of the Baveno criteria.

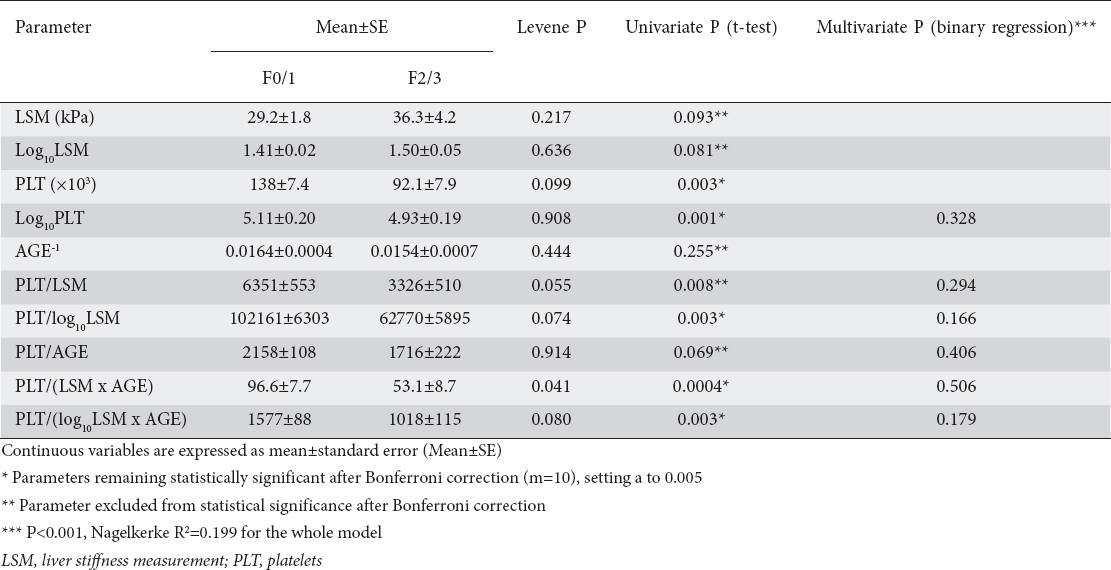

Table 3 New parameters proposed for validation of alternative criteria to Baveno VI. Comparison between patients who needed treatment and those who did not

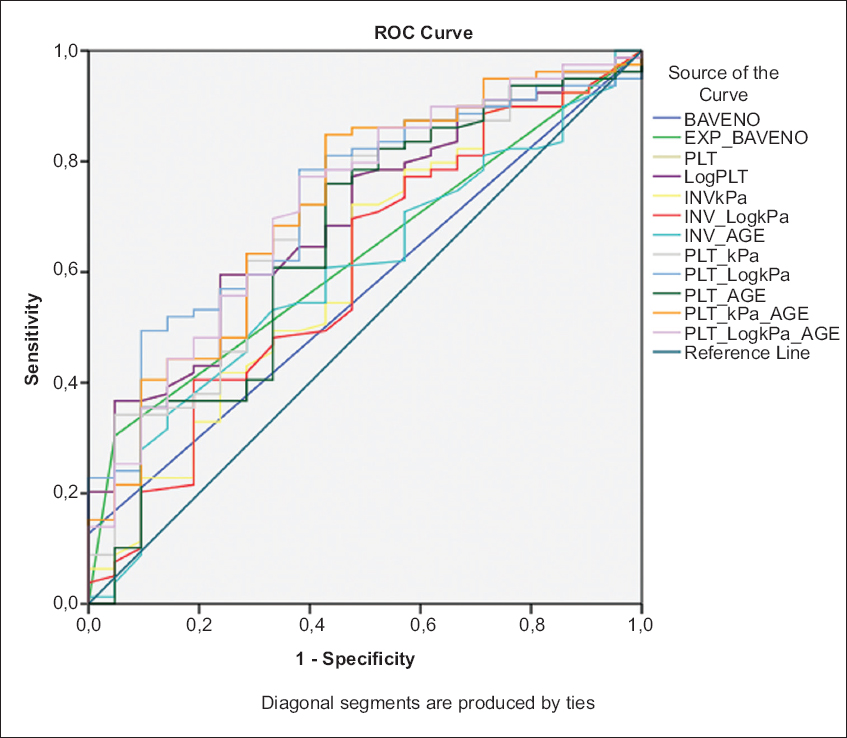

Figure 2 New parameters proposed for validation of alternative criteria to Baveno VI ones: ROC curve BAVENO, Baveno criteria; EXP_BAVENO, expanded Baveno criteria; PLT, platelets; INV, inverse; kPa, liver stiffness measurement

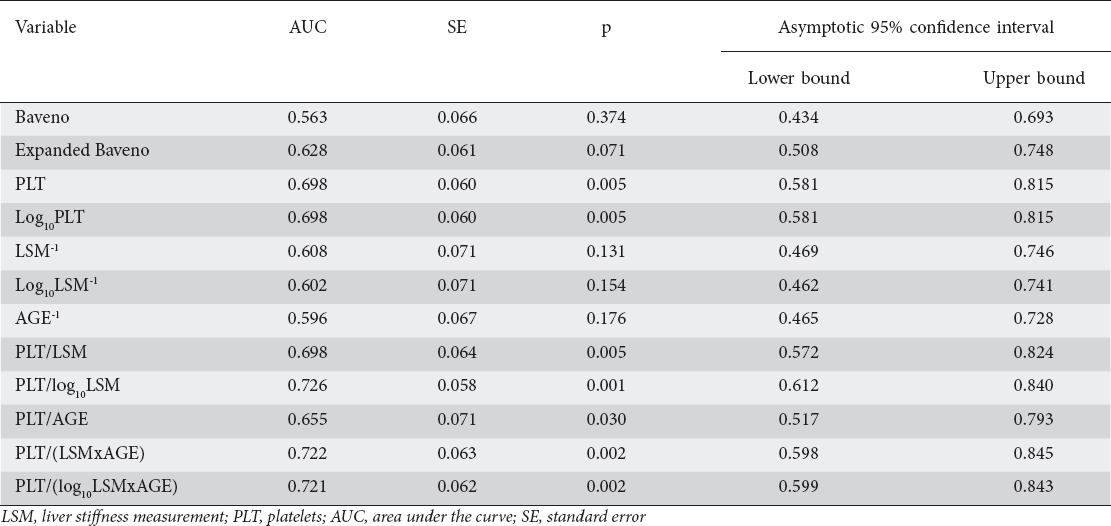

Table 4 New parameters proposed for validation of alternative criteria to Baveno VI: data from receiver operating characteristic curves
Figure 3 ROC curve for PLT / log10LSM LSM, liver stiffness measurement; PLT, platelets
In search of less strict criteria, we set the cutoff at 92,000 μL-1 x kPa-1, the value that gave the curve with the best possible Youden’s index (J=0.438). Under these circumstances, PLT/log10LSM ≤92,000 μL-1 x kPa-1 predicted the detection of HRV with 86% sensitivity, 53% specificity, 32% PPV and 94% NPV (P=0.001). By adopting this cutoff, 44.9% of our patients would avoid screening EGD. However, 3 of the 48 patients (6.3%) who met the abovementioned criterion needed treatment based on endoscopic findings, while of the remaining 59 patients, 19 needed treatment as proved by EGD (Fig. 1). The diagnostic accuracy measures of all tests are presented together in Table 5a and a comparison between them in Table 5b.

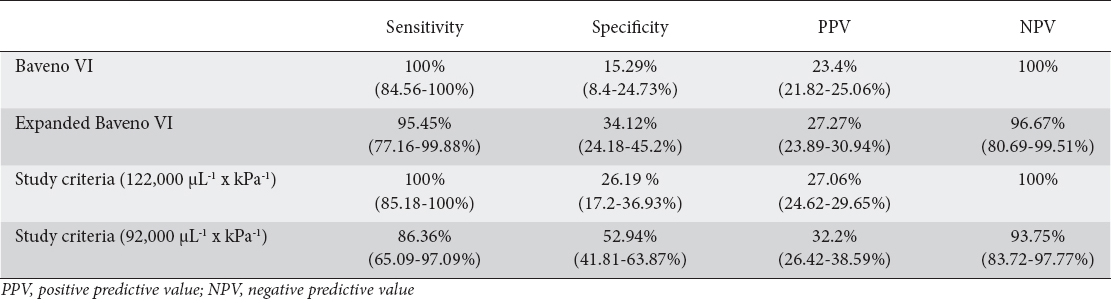

Table 5 (A) Diagnostic accuracy measures (with 95% confidence intervals) of criteria used for evaluation of high-risk varices
Table 5 (B) McNemar's tests for diagnostic accuracy measures of Table 5A
We successfully validated the Baveno VI criteria in our study, showing that patients who met the criteria could safely avoid screening EGD, since none of them had HRVs. Although the criteria showed good sensitivity and NPV, only a small percentage of the study population could avoid EGD on that basis, while the majority of the patients did not demonstrate HRVs in EGD. Thus, we proposed new criteria, based on PLT, age, and LSM; among these, age proved to be non-informative. By using the ratio PLT/log10LSM and setting the cutoff at 122,000 μL-1 x kPa-1, we maintained optimal sensitivity and NPV, while achieving a substantial increase in the percentage of patients who could avoid EGD when compared with the Baveno criteria (18.2% vs. 12.1%).
The Baveno VI criteria have been widely studied since they were published and many studies have validated their use [13-16]. The common conclusion of these studies is that the Baveno criteria can be used to exclude patients from EGD, with <5% of these patients being at risk of having HRVs. However, what many studies stress is that the criteria may be too strict and in the process of excluding the least amount of cirrhotics with HRVs from screening EGD, fail to decrease the number of screening EGDs appreciably. Consequently, there have been many studies proposing alterations to the Baveno VI criteria, in order to maximize their efficacy. The most significant among these is a study that proposed expanding the Baveno criteria to include patients with PLT >110,000 /μL and LSM<25 kPa [8]. This study succeeded in significantly decreasing the number of EGDs while keeping within the criteria a meager percentage of patients with HRVs. By applying these criteria to our study population, we achieved very satisfying sensitivity and NPV, while 28.0% of the patients would avoid EGD, though 3.3% of them erroneously. These data show a further reduction in the number of EGDs with a reasonable loss amount.
Inspired by this paradigm, we searched for potent alternative cutoffs for our criteria. Therefore, we investigated every single curve point, starting from the one that achieved the best possible Youden’s index (J=0.438), namely 92,000 μL-1 x kPa-1. Indeed, PLT/log10LSM ≤92,000 μL-1 x kPa-1 significantly raised the specificity of the criteria. By adopting this cutoff, almost half of our patients would avoid screening EGD. However, a significant percentage of the patients who met this criterion (6.3%) had HRVs.
A subject of debate that has been raised by previous studies is the percentage of missed HRVs that we consider acceptable when evaluating patients using noninvasive techniques. The concept raised by the authors of the study that heavily influenced the Baveno VI criteria, titled “the Anticipate study”, was that a percentage as high as 5% can be considered acceptable [2]. This concept has been adopted by other researchers and even included in a technical review of the American Gastroenterological Association regarding the role of TE in chronic liver diseases [11,17]. Under this view, our expanded criteria, using a cutoff of 92,000 μL-1 x kPa-1, could tolerate a slightly elevated percentage of false negatives (6.3%) to achieve an auspicious amount of screening avoidance (44.9%). Furthermore, taking into account that the percentages described are very close to the 5% threshold, that the expanded Baveno VI criteria showed only a 1.6% risk of not identifying HRVs in the parent study, and that both offer a significant advantage in terms of EGD avoided, their use should not be summarily rejected.
Primary limitations of our study are the relatively small sample size and the limited number of parameters examined. Other studies have also used additional parameters to the ones used in the Baveno VI criteria. As a case in point, a study by Jangouk et al showed that by stepwise analysis using a PLT cutoff of 150,000/μL and a model for end-stage liver disease score cutoff of 6, 100% of qualified patients did not have HRVs in screening EGD and the number of endoscopies avoided increased to 54% of the study population in the US cohort [15]. However, the Italian cohort of the study produced less favorable results, with 30% of the study population avoiding EGD, while 3% of the patients fulfilling the criteria above did have HRVs.
The value of our criteria is that they combine the liver stiffness and PLT measurements, thus including cases that may be just over the cutoff in the Baveno criteria. Though the use of the binary approach in the Baveno criteria aims to minimize the risk of overlooking HRVs, our study shows that a solitary cutoff, based on continuous variables that combine these data, can be equally safe and may even be more successful in decreasing the number of unnecessary EGDs.
To conclude, our study validates the Baveno VI criteria, contributing to their wider application in clinical practice. The alternative criteria, with the use of the PLT/log10LSM ratio we propose, seem to offer even more in terms of the number of endoscopies avoided, while maintaining a very low percentage in terms of missed HRVs. A more extensive study to determine a cutoff level that would provide acceptable percentages of both missed HRVs and avoided endoscopies could provide a valuable alternative to the Baveno VI criteria, or even replace them.
What is already known:
Variceal bleeding is a common complication of advanced liver disease
The Baveno VI criteria propose that patients with platelets (PLT) >150,000 and liver stiffness measurement <20 kPa exhibit a very low risk of having high-risk varices (HRVs); they can therefore safely avoid screening endoscopy
There are ongoing efforts to improve upon the Baveno criteria, in order to further reduce the number of endoscopies
What the new findings are:
The Baveno VI criteria were validated in our study population
A new set of criteria based on the quotient PLT/log10 (liver stiffness measurement) was developed
The new set of criteria proved effective at distinguishing patients without HRVs
