An 86-year-old patient known for recurrent symptomatic cholelithiasis episodes and previous cholecystectomy presented to the emergency department for epigastric pain, fever, dark urine, and clear stools. Physical examination revealed jaundice and right upper quadrant tenderness without guarding. Laboratory results showed moderate inflammatory syndrome and increased total bilirubin level (165 µmol/L, N: <17 µmol/L) with cholestasis and hepatic cytolysis. Lipase was normal. Computed tomography scan showed a 3.7-cm choledocholithiasis (Fig. 1, arrow) with extra- and intrahepatic bile duct dilatation (Fig. 1, asterisk).

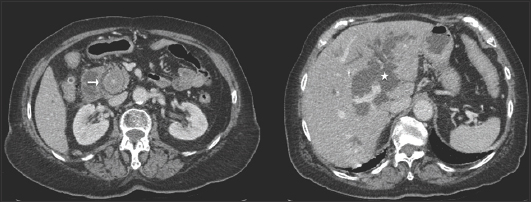

Figure 1 Computed tomography scan: axial slices showing a large calculus in the common bile duct (arrow) and dilatation of the extrahepatic and intrahepatic (asterisk) bile ducts
Diagnosis of obstructive cholangitis was made. Antibiotic therapy was started and the patient underwent endoscopic retrograde cholangiopancreatography (ERCP) the next day. Standard ERCP did not succeed in extracting the calculus. Two 10-French plastic prostheses were put in place to enable biliary drainage. One month later the patient was rescheduled for ERCP, which succeeded in extracting the calculus and removing the prostheses. The common bile duct was so dilated (>4 cm) that it was possible to enter it with an 11.3-mm diameter therapeutic gastroscope, allowing the large calculus to be visualized (Fig. 2A, asterisk). The calculus was fragmented with a lithotripsy device (Fig. 2B) and finally extracted using a Dormia basket after papillotomy (Fig. 2B). The patient was discharged a few days later.
Figure 2 (A) Endoscopic view through a gastroscope of the large choledochal stone. (B) Endoscopic view of the fragmentation of the stone (left panel) and endoscopic view after removal of the biliary stone (right panel), showing a cleared and empty common bile duct
In cases with wide dilatation of the common bile duct, the use of a gastroscope might help to obtain a good direct endoscopic visualization of the biliary stone. Lithotripsy techniques using mechanical, electrohydraulic or laser endoscopic devices can be useful to effectively fragment difficult and large obstructing choledochal stones [1-3].
References
1. Aburajab M, Dua K. Endoscopic management of difficult bile duct stones.
2. Kedia P, Tarnasky PR. Endoscopic management of complex biliary stone disease.
3. Watson RR, Parsi MA, Aslanian HR, et al;ASGE Technology Committee. Biliary and pancreatic lithotripsy devices.
