Background The aim of this study was to evaluate the diagnosis and management of postoperative bile leaks, reporting typical diagnostic findings and available percutaneous techniques in association with other diagnostic and management methods.
Methods Thirty-six patients (28 male) were treated for postoperative bile leaks. A biliary leak was clinically suspected in case of persistent leakage of bilious material from a surgical drain, or in the presence of non-specific symptoms such as abdominal pain, fever and anorexia, with or without laboratory alteration of liver enzymes. Radiological confirmation was mainly based on noninvasive methods such as ultrasound, computed tomography, and magnetic resonance cholangiopancreatography. We assessed each treatment by evaluating multiple factors, including technical success (TS) and clinical effectiveness (CE), defined as primary or secondary. We also evaluated overall CE (OCE), defined as leak control with either single or multiple procedures.
Results TS and OCE were achieved in all patients (36/36; 100%) with a grade A or B biliary leak. No grade C was observed. There were no major complications. Minor complications were observed in 7/36 (19.4%) patients. No procedure-related deaths occurred.
Conclusions In our study, considering all percutaneous techniques, leak healing was achieved in all the patients with a grade A or B biliary leak. These procedures provide a less invasive approach and are increasingly recognized as having a significant role in the management of complications and should be considered as an integral component in the postoperative management of these patients.
Keywords Bile leakage, postoperative complications, percutaneous transhepatic biliary drainage, covered stents, embolization
Ann Gastroenterol 2020; 33 (6): 675-679
Bile leak is a common postoperative complication of surgical procedures for various hepatobiliary and pancreatic pathologies. The definition of postoperative bile leak remains arbitrary, with different cutoff values for drainage fluid volume and/or bilirubin concentration within various time intervals. This complication increases postoperative morbidity in already fragile patients and can lead to an increased risk of infections, prolonged hospital stays and need for reoperation [1].
The International Study Group of Liver Surgery (ISGLS) suggested a grading system based on the impact of this complication on the patients’ clinical management [2].
• Bile leak grade A is the most common and has little or no impact on patients’ management. The ISGLS suggests a non-operative management, based on close follow up with ultrasound (US), computed tomography (CT), or magnetic resonance imaging and periodic blood examination evaluation.
• Patients with grade B leaks present with a moderately compromised clinical condition. According to the ISGLS, endoscopic or percutaneous procedures are indicated in these patients.
• Patients with grade C leaks present with a severely compromised clinical condition. In these cases, the leak is due to complex duct transection or complete hepato-jejunal dehiscence with exclusion of liver segments. In this critical scenario, the ISGLS recommends a surgical approach [2].
Bile leak incidence is strictly linked with the type of surgery conducted, ranging from 0.9-9%, with reported mortality rates between 8.7% and 39% and morbidity varying between 22% and 44% [3]. The appropriate diagnosis and treatment of postoperative biliary leaks are crucial to prevent further life-threatening complications, such as cholangitis, intra-abdominal infection, biliary cirrhosis, end-stage liver disease and death [4-6]. The treatment of a bile leak is decided based on the severity and complexity of the leak. Surgical repair is rarely proposed in bile leaks classified as minor and in emergency situations, because of the notably high mortality rates following relaparotomy, ranging from 13-60% [7,8]. In most cases, the options are endoscopic or radiological management [8].
Currently, interventional radiology (IR) is a rapidly expanding field that plays a pivotal role in the management of postoperative complications such as biliary leakage, with a growing number of applications as first-line therapy [4,9,10]. The aim of this study was to evaluate our experience in the management of postoperative bile leakages in the IR Unit, reporting the effectiveness of current percutaneous therapeutic techniques.
This retrospective study was approved by the internal review board. Thirty-six patients (28 male, mean age: 68 years; and 8 female, mean age: 61 years), were treated for postoperative bile leak from January 2015 to May 2019. Both intrahepatic and extrahepatic leaks were treated (15 and 21, respectively). The type of treatment performed and relative percentage are reported in Table 1.
Table 1 Sex of patients, primary pathology and etiology of the leaks
A biliary leak was clinically suspected in case of persistent leakage of bilious material from a surgical drain, or in the presence of non-specific symptoms such as abdominal pain, fever and anorexia, with or without alterations of liver enzymes on laboratory tests. Radiological confirmation was mainly based on noninvasive methods, such as US, CT and magnetic resonance cholangiopancreatography (MRCP) (Fig. 1,2), with or without hepato-specific contrast agents.
Figure 1 Bile leak after laparoscopic cholecystectomy in a 58-year-old woman. (A) Axial T2-weighted image obtained 45 days post intervention shows a loculated fluid collection (arrow) in the gallbladder bed. (B) Gd-EOB-DTPA-enhanced T1-weighted image obtained 60 min after contrast injection shows a jet of contrast material (arrows) within the loculated fluid collection, indicative of a bile leak
Figure 2 A 55-year-old man who underwent a Whipple procedure for pancreatic cancer and developed a biliary leakage from the biliodigestive anastomosis. (A) Axial post-contrast T1-weighted image showing hyperintense biloma (arrowhead); (B) Coronal post-contrast T1-weighted image showing extravasation of contrast material revealing the leakage location
According to the ISGLS classification, the patients included in our study fell into 2 categories:
• Of 36 patients, 18 were first classified as having grade A bile leaks and treated with US or CT-guided percutaneous abdominal drainage (PAD) placement.
• The other 18 patients were classified as having grade B bile leaks. All grade B patients were treated with percutaneous transhepatic biliary drainage (PTBD) placement; 2 of them additionally underwent a percutaneous endoscopic rendezvous (PE-RV) procedure, which combines an endoscopic and a percutaneous approach.
Percutaneous transhepatic cholangiography was performed in all candidates during the PTBD procedure to evaluate biliary anatomy, locate the site of the leak, and to determine the most suitable peripheral approach. In rare cases, endoscopic retrograde cholangiopancreatography was necessary in order to perform a PE-RV. Additional treatment actions, i.e., covered biliary stents and fistula embolization, were performed if the leak persisted.
We assessed the treatment effectiveness by evaluating several factors:
• Technical success (TS), defined as the ability to carry out the interventional procedure successfully.
• Clinical effectiveness (CE), defined as the ability to stop the leak. This was further classified into primary CE (PCE), when the leak was corrected with the first procedure alone, and secondary CE (SCE), when an additional procedure (e.g., stenting or embolization) was necessary in order to correct the leak. Overall CE (OCE) was achieved when the leak was controlled with either a single or multiple procedures.
Minor and major complications were evaluated according to the Society of Interventional Radiology guidelines [11].
The success of the treatments is reported in the flowchart (Fig. 3). Of the 36 patients treated for bile leakage, 18 were initially classified as having grade A bile leakage and 18 as having grade B bile leakage. TS was calculated as 100% (36/36), as all IR procedures were carried out successfully.

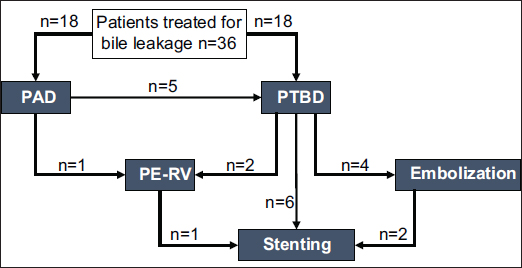

Figure 3 Patients’ treatment success
PAD, percutaneous abdominal drainage; PTBD, percutaneous transhepatic biliary drainage; PE-RV, percutaneous-endoscopic rendezvous technique; PC stenting, covered percutaneous stenting
All 18 patients with grade A leaks underwent PAD. The PCE of this procedure was 63.9% as 12 of 18 patients did not need additional treatment. However, 6 grade A bile leaks were later reclassified as grade B: of these, 1 patient was later treated with the PE-RV technique, while 5 patients underwent PTBD.
PTBD was also performed in all 18 patients originally classified as having grade B leaks. Of a total of 23 patients who underwent PTBD, as either first or second line of management, 12 received further treatment. In particular, 6 patients required further stent placement, 4 underwent fistula embolization and 2 were treated with the PE-RV technique. Of the 4 patients who required fistula embolization with plugs, coils and glue, 2 needed percutaneous stent placement in a later phase.
Of the total of 3 patients treated with the PE-RV technique, one later required percutaneous stent placement. A total of 9 patients required percutaneous placement of covered stents; of these, one required placement of 2 stents.
SCE was calculated as 36.1%, as 1/18 patients with grade A leaks and 12/18 patients with grade B leaks needed a second look and additional treatment. OCE was 100%, as the final objective of leak healing was achieved in all patients who underwent interventional procedures.
There were no major complications immediately related to the interventional radiology procedures. Minor complications, such as fever, pain, bleeding from the point of access and peri-catheter leakage, were observed in 7/36 (19.4%) patients [12]. In particular 3 patients presented fever, 2 patients presented bleeding from the point of access, 1 patient complained about pain and 1 patient presented a peri-catheter leakage.
The drainage was kept for a mean of 14.7 days, ranging from a minimum of 7 to a maximum of 33 days. Hospital stay after the procedure varied from 9-41 days, with a mean of 18.5 days of stay. No procedure-related deaths occurred.
Despite advances in surgical techniques and the perioperative management of hepatobiliary and pancreatic surgeries, biliary leaks remain a common complication that may lead to high morbidity and mortality rates. Surgical relaparotomy is a difficult procedure that requires high surgical competence and shows high mortality rates.
In our center, biliary leaks are managed between the IR and Endoscopy teams. More specifically, the intrahepatic leaks undergo an IR treatment while the extrahepatic ones can be managed by both IR and Endoscopy; they thus require a multidisciplinary evaluation in order to choose the most suitable treatment for each patient. In our case, 15/36 leaks were intrahepatic; thus those patients were directly managed using IR. Among the 21/36 extrahepatic leaks, in 11 there was a hepato-jejunostomy so the IR approach was mandatory. In the other 10 cases, treatment was determined by the multidisciplinary evaluation [13]. Percutaneous IR procedures are preferred as a first-line therapeutic option to avoid more invasive procedures. The role of IR is to diagnose biliary damage and to treat it either with a definitive curative purpose, or as a bridge to relaparotomy.
The diagnosis of bile leakage was achieved in most patients using noninvasive methods, i.e., US, CT and MRCP. Its treatment depends on the severity of the leak (grades A-C), taking into account the impact on the patient’s clinical management [5,14,15]. To allow healing of the biliary lesion, it is essential to drain the bile collections to avoid or treat superinfections and to restore the exclusive continuity between the biliary tract and the digestive system. PAD, PTBD, and PE-RV are safe and effective procedures for the treatment of postsurgical biliary leaks.
Grade A bile leaks have little or no impact on clinical management, since they have a spontaneous resolution, otherwise they can be controlled by intra-abdominal drainage, placed during the surgical intervention or in a separate radiological intervention session, with a persistent decrease in volume of drain fluid and bilirubin concentration in the fluid. Additional diagnostic or therapeutic interventions are usually not necessary [14-16].
In our cases, TS represented 100%, as all interventional percutaneous procedures were carried out successfully. Our results are consistent with the literature, which reports a success rate for CT-guided PAD ranging from 75.7-86.9% up to 100%, with only a few patients requiring more than one drainage [5,9].
In the case of grade B bile leaks, interventional radiologic and endoscopic procedures are often suggested by ISGLS along with antibiotic therapy [6,13]. The aim is to create a low-pressure system along the biliary tract by redirecting the bile flow from the site of the defect into the bile ducts and duodenum. These procedures may also be used as a bridging therapy to stabilize the patient before surgery in the case of grade C bile leaks [5,9,17].
TS rates of PTBD for biliary leak are reported to be 40-100% without secondary surgery (Table 2) [5,8,18,19]. The wide range of success rates is attributable to the use of different interventional strategies (Fig. 4) [20]. Our data for PTBD procedures are consistent with the literature.

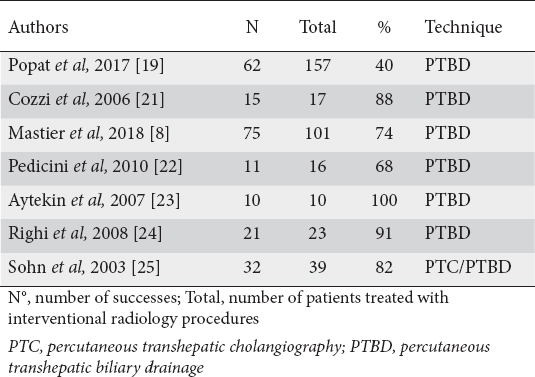

Table 2 Biliary leaks treated with interventional radiology procedures and success rate
Figure 4 Right-sided percutaneous transhepatic biliary drainage. Percutaneous transhepatic cholangiography during the procedure demonstrating the presence of biliary leakage (arrow)
If the biliary leak persists, other safe and effective interventional procedures may be considered, depending on the characteristics of the bile injury. In particular, a PE-RV procedure can be performed with the aid of endoscopy, or the isolated biliary duct may be occluded using embolizing agents, such as fibrin, acetic acid, ethanol, and glues. Covered stents, coils or plugs can be used to embolize leaks or fistulas communicating with the biliary tree (Fig. 5,6) [5].
Figure 5 Biliary leak. (A) Percutaneous transhepatic cholangiography demonstrated biliary leakage (arrow) after hepatectomy; (B) stent and plug placement successfully covered the leakage.
Figure 6 Patient with intrahepatic leak after a left hepatectomy. Axial view contrast enhanced computed tomography scan showing a biloma with percutaneous abdominal drainage within it (white arrow) (A); cholangiography showing the leak’s origin refilling the biloma with the drainage within it (B); during the procedure the catheter has been positioned at the leak’s origin to perform an embolization with glue (C); final step of the procedure: a covered stent has been positioned to cover the leak’s origin (D)
In our case, the calculated PCE for all patients was 63.9%, suggesting that the condition may be solved using the first-choice procedure. SCE was calculated as 36.1%; the rather low percentage was expected and consistent with the literature, as only a few (n=16) patients required a second look with IR procedures. None of these patients required traditional surgery.
Grade C bile leaks usually require relaparotomy. Operative procedures may include maneuvers such as suture closure of leaking bile ducts, clearance of intra-abdominal fluid collections, reconstruction of a bilio-enteric anastomosis and placement of additional drains for continuous postoperative lavage [14,15]. No grade C leak was observed among our cases.
The limitations of our retrospective study are the relatively short time frame taken into consideration (January 2015-May 2019) and, as a consequence, the number of patients included in the study. Another limitation is the lack of data regarding some of the patients’ outcomes.
In conclusion, considering all percutaneous techniques, in our study the OCE and therefore leak healing was achieved in all the patients with grade A and B biliary leaks. These procedures provide a less invasive approach, are increasingly recognized as having a significant role in the management of complications, and should be considered an integral component in the postoperative management of these patients.
What is already known:
• Bile leak is a common postoperative complication of surgical procedures for various hepatobiliary and pancreatic pathologies
• Appropriate diagnosis and treatment of postoperative biliary leaks are crucial to prevent further life-threatening complications
• In the case of high-grade bile leaks, interventional radiologic and endoscopic procedures are often performed along with antibiotic therapy, as suggested by International Study Group of Liver Surgery
What the new findings are:
• In our study the overall clinical effectiveness and therefore leak healing was achieved in all the patients with grade A and B biliary leaks
• Procedures used in our interventional radiology Unit provide a less invasive approach and are increasingly recognized as having a significant role in the management of complications
• Our calculated primary clinical effectiveness for all patients suggests that the bile leakage may be solved using the first-choice procedure
